Outdoor Decorative Solar 20 Feet Street Light Pole Single Arm Double Arm

one container
MOQ
USD 99-995 PER POLE
Price
Outdoor Decorative Solar 20 Feet Street Light Pole Single Arm Double Arm
Features Gallery Product Description Request A Quote
Features
Specifications
MATERIAL: Q235 Q345
LIFETIME: 50 YEARS
WELDING: AWSD1.1
SURFACE TREATMENT: HOT DIP GALVANIZATION
SHAPE: Conoid ,Multi-pyramidal, Columniform , Polygonal Or Conical
COLOR: Ral Standard
LAMP POWER: 20-400w
Optical Assembly Of Lighting Fixture: IP65
Highlight:

decorative 20 feet street light pole

,

galvanized 20 feet street light pole

,

single arm galvanized light pole
Basic Infomation
Place of Origin: JIANGSU CHINA
Brand Name: milky way
Certification: ISO9001:2015
Model Number: yin-he
Payment & Shipping Terms

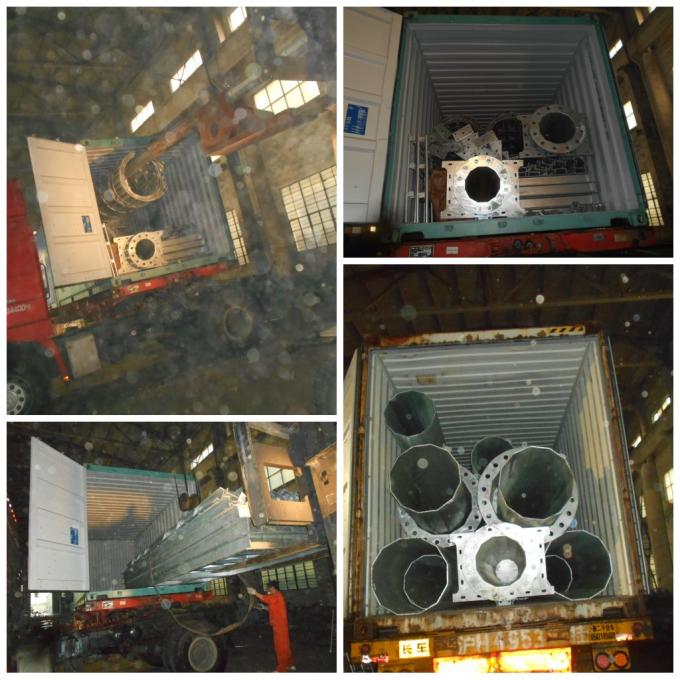

Packaging Details: The normal package is container(Size: L*W*H). Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole , anyway also can following by client required , The lo
Delivery Time: 20 DAYS ALWAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 POLES PER MONTH
Product Description





Specifications:



Material: Hot rolled steel, Q235,Q345,S235,S355,SS400,Gr 50
Yield strength of Material:

Minimum yield strength>=235n/mm2 for Q235, S235 and SS400

Minimum yield strength>=345n/mm2 for Q345 S355 and Gr 50
Pole’s height: 3m –15m
Length of one part Within 16m once forming without slip joint
Wall thickness: 2.3mm-30mm
Pole's Shape Can be made:

Round, Polygonal, Taper Octagonal, Taper round, Round conical,

Taper Square, Square.
Arm type can be made: Single arm, Double arm, Tri-arm, Four-arm
Arm Diameter:

Diameter as 42mm, 48mm, 60mm, 76mm and etc, can fit to any

diameter’s lamps.
Power: 250W to 400W
Welding

Advanced submerge-arc welding and CNC welding equipment.

It has past flaw testing, internal and external double welding

makes the welding beautiful in shape. It confirms with the

international welding standard of CWB and AWS D 1.1
Galvanization:

Hot dip galvanization with thickness of 80-100µm average

in accordance with Chinese standardGB/T 13912-2002 or

American standard ASTM A123, ISO: 2626-1985.
Manufactury Capacity Per Day: 250

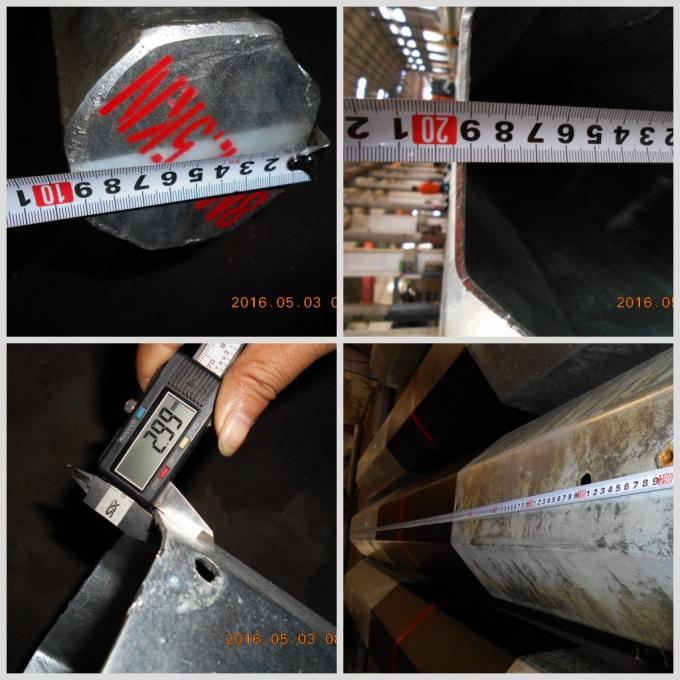

Wall thickness Tolerance:



+- 0.1mm from 2.3mm to 4mm. +- 0.2mm from 5mm to 20mm.

+- 0.5mm from 22mm to 30mm
Painting color: (RAL)Color card or Refer to client’s requirement
Surface treatment 1: Black pole, Rough pole
Surface treatment 2: Hot dip Galvanizing antirust.
Surface treatment 3: Hot dip galvanizing with powder coating
Temperature range -35 °C~+45 °C
Wind Speed:

Aganist wind pressure of 120Km/h to 180Km/h, it according

to client’s design.
Base plate mounted

Base plate is square, octagonal or round in shape with

slotted holes for anchor bolt and dimension as per customer’s

requirement.
Ground mounted: The length buried underground as per customer’s requirement.
Quality Control According to ISO9001-2008 requirements.
Certificates ISO9001-2008, Audited Supplier, The AAA grade certificate of goodwill
Other Less land occupation & easy maintenance.

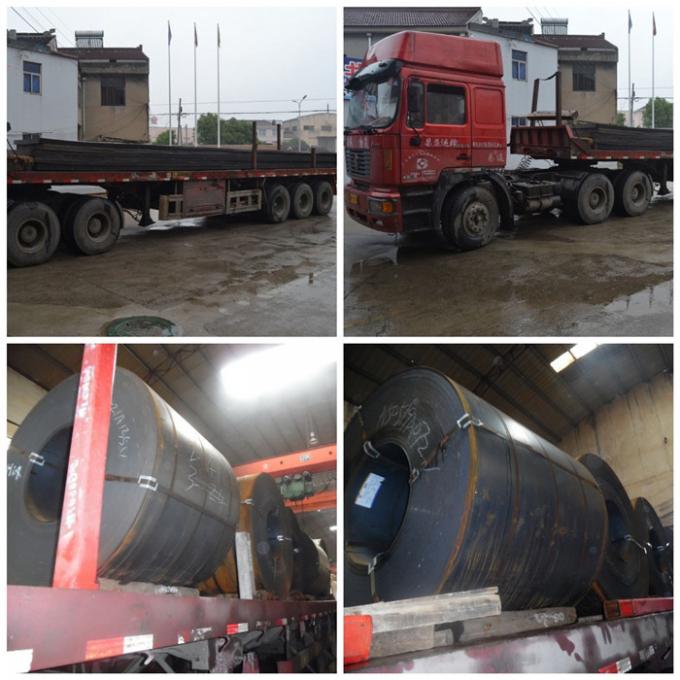

Description of Material:
The material we use is from Baosteel.According to the different strength request,we can use the Q235,Q345 and GR65.The strength of GR 65 is best and Q235 is lowest.
For the street light pole,we usually choose Q235 and Q345.
The good quality of steel material guarantee the good quality of the finished steel pole.

Outdoor Decorative Solar 20 Feet Street Light Pole Single Arm Double Arm 0





The information to inquiry or purchase
-Steel pole height
-Dimension of the flange
-Position and dimension of the service door
-Cross arm type and length,the position to install in the steel pole
-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)
-Wind speed
-Destination port
-Other.



Outdoor Decorative Solar 20 Feet Street Light Pole Single Arm Double Arm 1





Installation
-Remove all the equipment on the pole during Assembly.
-Circle a sling around th epole shaft of each section.
-Fix the sling on top section to one pulley block.
-The sling on the bottom section is tightly fixed and fixed at the center of gravity.
-Make the steel pole vertical by tighten the sling of the top section.
-Fix the steel pole.
-Remove the sling.

Outdoor Decorative Solar 20 Feet Street Light Pole Single Arm Double Arm 2
