11M 8KN Galvanized Steel Tubular Telescopic Pole with bitumen 450mpa Yield Strength

1 pcs
MOQ
Negotiation
Price
11M 8KN Galvanized Steel Tubular Telescopic Pole with bitumen 450mpa Yield Strength
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Steel Tubular Pole
Welding Standard: AWSD 1.1
Material: Q235
Safety Factor: 8
Wall Thickness: 3mm
Surface Treatment: Hot Dip Galvanized
Basic Infomation
Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/
Model Number: Steel Tubular Pole
Payment & Shipping Terms
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T,L/C at sight
Supply Ability: 300pcs per day
Product Description

11M 8KN Galvanized Steel Tubular Telescopic Pole with bitumen 450mpa Yield Strength


Specification Approved by Africa Electric Power Company

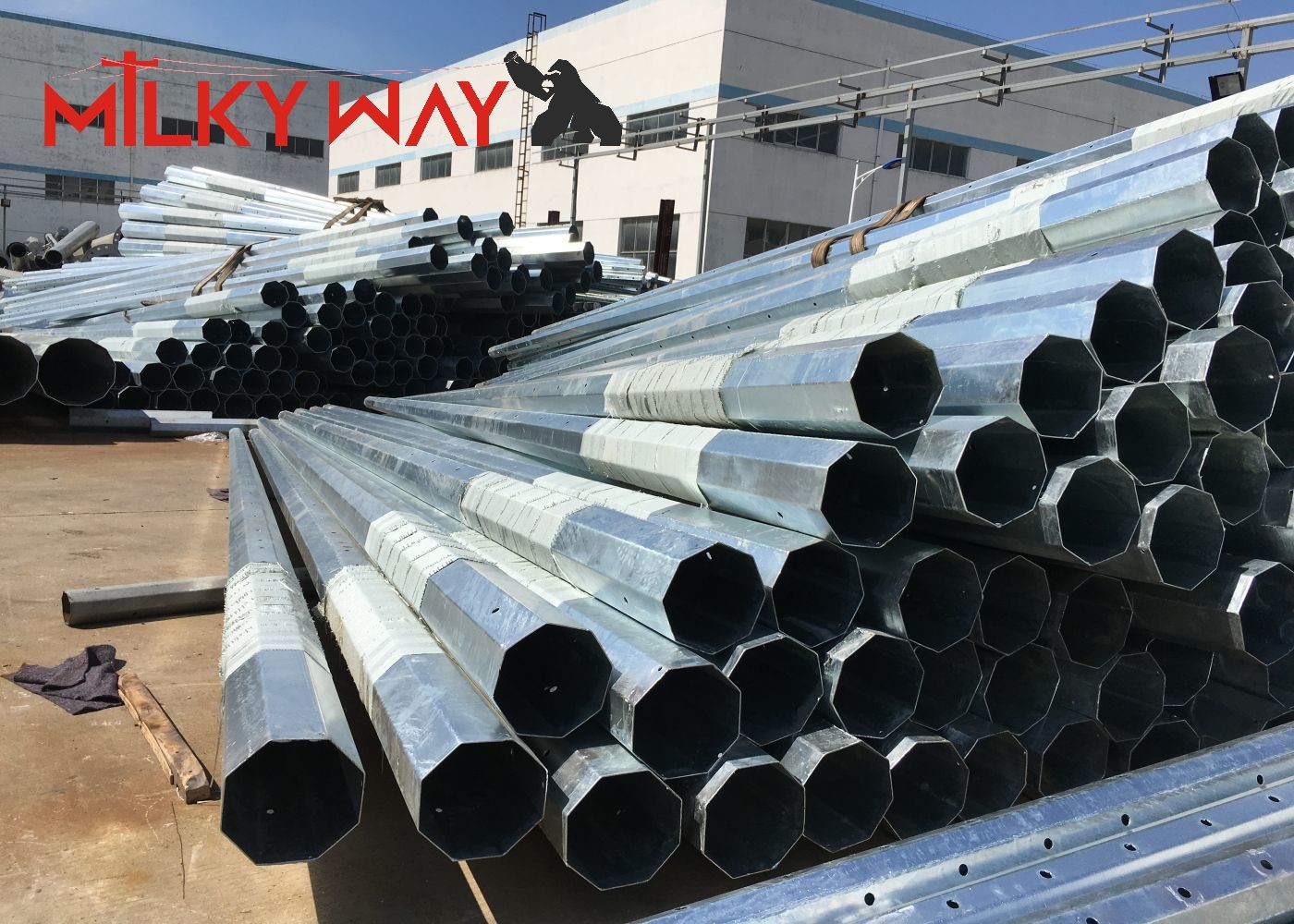

11M 8KN Galvanized Steel Tubular Telescopic Pole with bitumen 450mpa Yield Strength 0



 Descripition of material:


 Steel
 The material is in accordance with NF EN 10025
 Standard and NF EN 10149 Standard,it has the following property.
 -Yield Strength=355N/mm2
 -Toughness remains the same under 20 degrees below zero.
 -Galvanization is in accordance with NFA35503 Standard Class 1.

 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 86μm.

 11M 8KN Galvanized Steel Tubular Telescopic Pole with bitumen 450mpa Yield Strength 1


 Specification:


Suit for Electricity distribution
Shape Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-
Torlance of the dimenstion +- 2%
Power 10 KV ~550 KV
Safety Factor Safety factor for conducting wine : 8
Safety factor for grounding wine : 8
Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Marks Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required
Joint of Poles Insert mode,innerflange mode,face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour . 30 m /s
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Max ultimate tensile strength 620 mpa
Standard ISO 9001
Length of per section Within 14m once forming without slip joint
Welding We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness 1 mm to 30 mm
Production Process Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages
Packages Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data



 Production Process

 Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding  →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting  →Recalibration →Packages


11M 8KN Galvanized Steel Tubular Telescopic Pole with bitumen 450mpa Yield Strength 2



 Company Instruction:

 JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu  Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200  million . We have 20 years experience in design and  production. Our main products are power pole,  communication towers, street lighting poles, steel bracket and so on. The company has strong technical  force, advanced production equipment, perfect quality management system, product quality has reached  international advanced level.

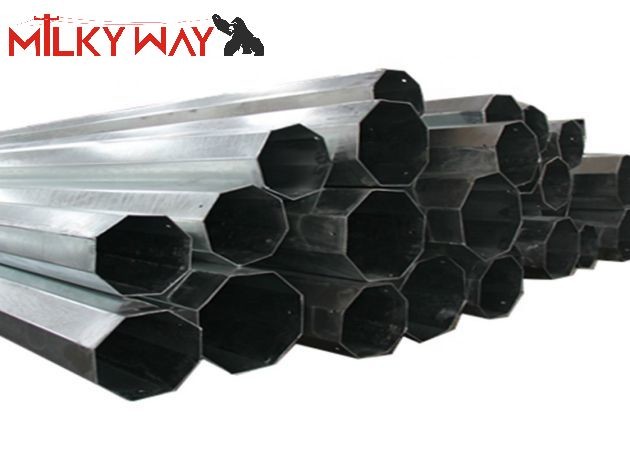

11M 8KN Galvanized Steel Tubular Telescopic Pole with bitumen 450mpa Yield Strength 3
