6mm Galvanized Steel Power Transmission Pole 10kV-220kV
6mm Galvanized Steel Power Transmission Pole 10kV-220kV
Basic Properties
Place of Origin:
China
Brand Name:
MilkyWay
Certification:
ISO9001/BV/
Model Number:
Transmission Steel Power Pole
Trading Properties
Minimum Order Quantity:
1 pcs
Price:
Negotiation
Payment Terms:
T/T,L/C at sight
Supply Ability:
300pcs per day
Product Summary
6mm Galvanized Steel Power Transmission Poles High-performance, long-lasting galvanized steel poles for power transmission applications from 10kV to 220kV. Product Specifications Attribute Value Product Name Galvanized Power Pole Shape Octagonal Or Round Power Capacity 10kV to 220kV Joint of Poles ...
Product Custom Attributes
Highlight
6mm galvanized steel power pole
,10kV-220kV transmission pole
,galvanized steel transmission pole
Product Name:
Galvanized Power Pole
Shape:
Octagonal Or Round
Power Capacity:
10kV To 220kV
Joint Of Poles:
Slip Joint
Warranty Time:
15 Years
Thickness:
1 Mm To 36mm
Product Description
Detailed Specifications & Features

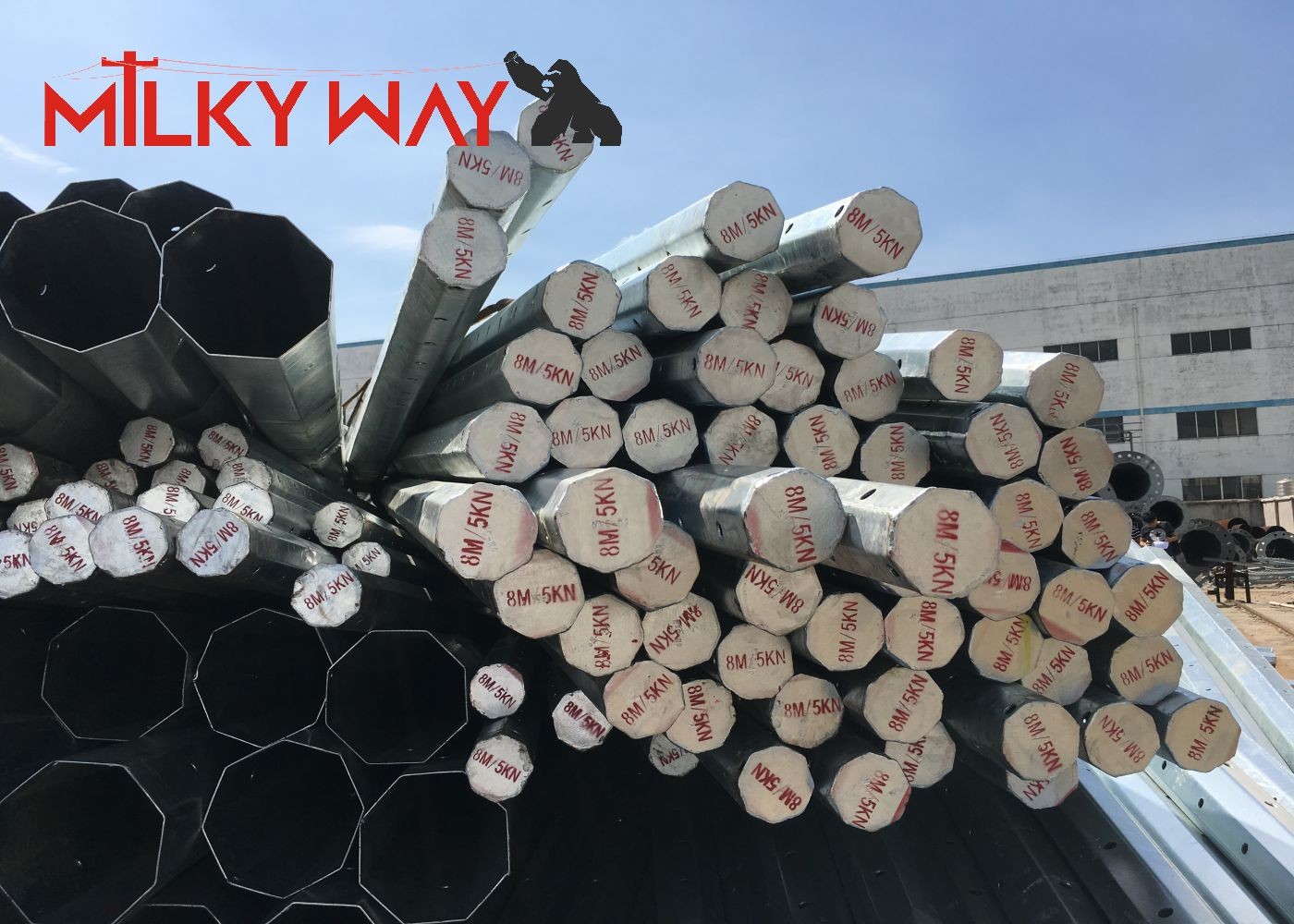

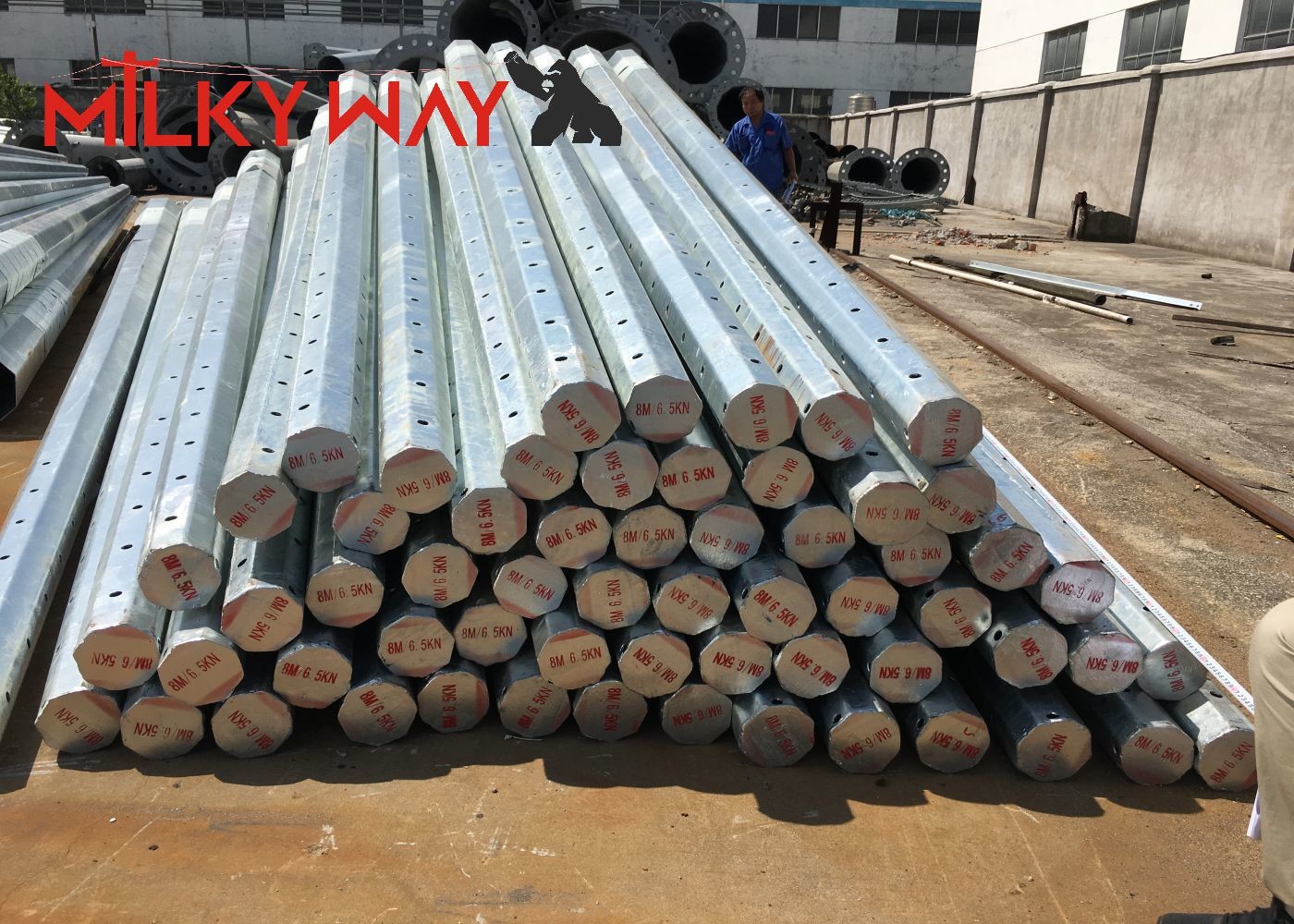

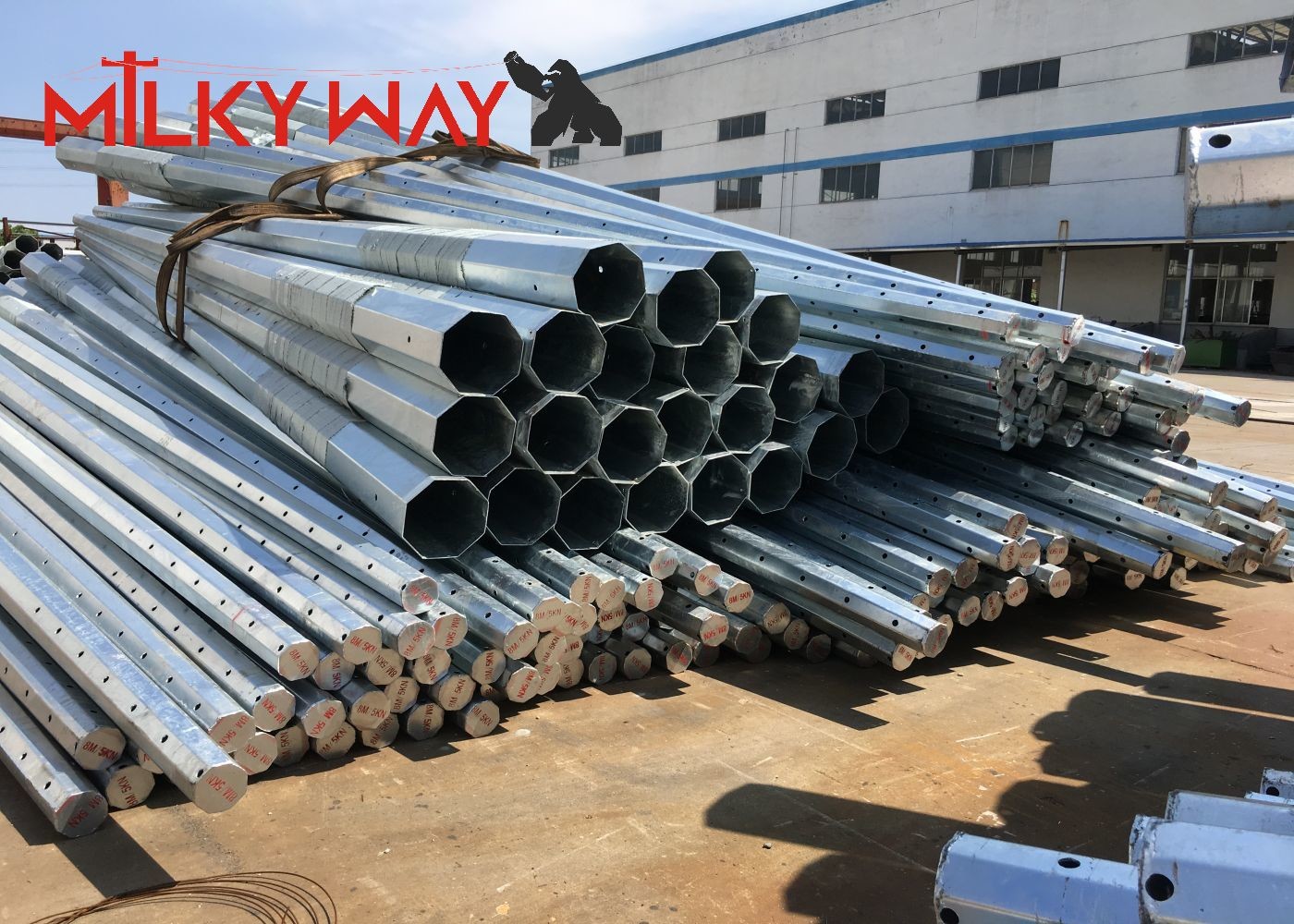

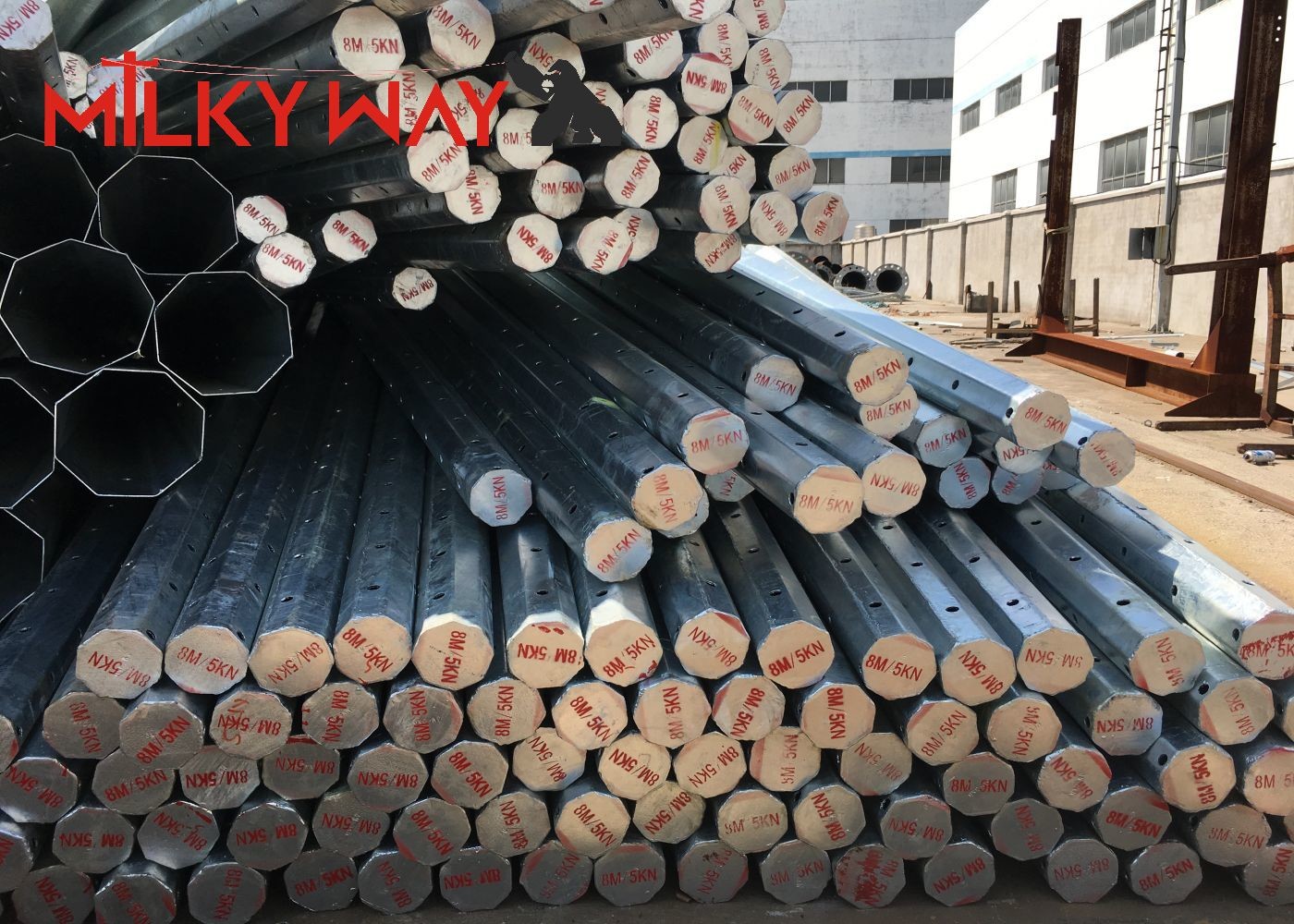

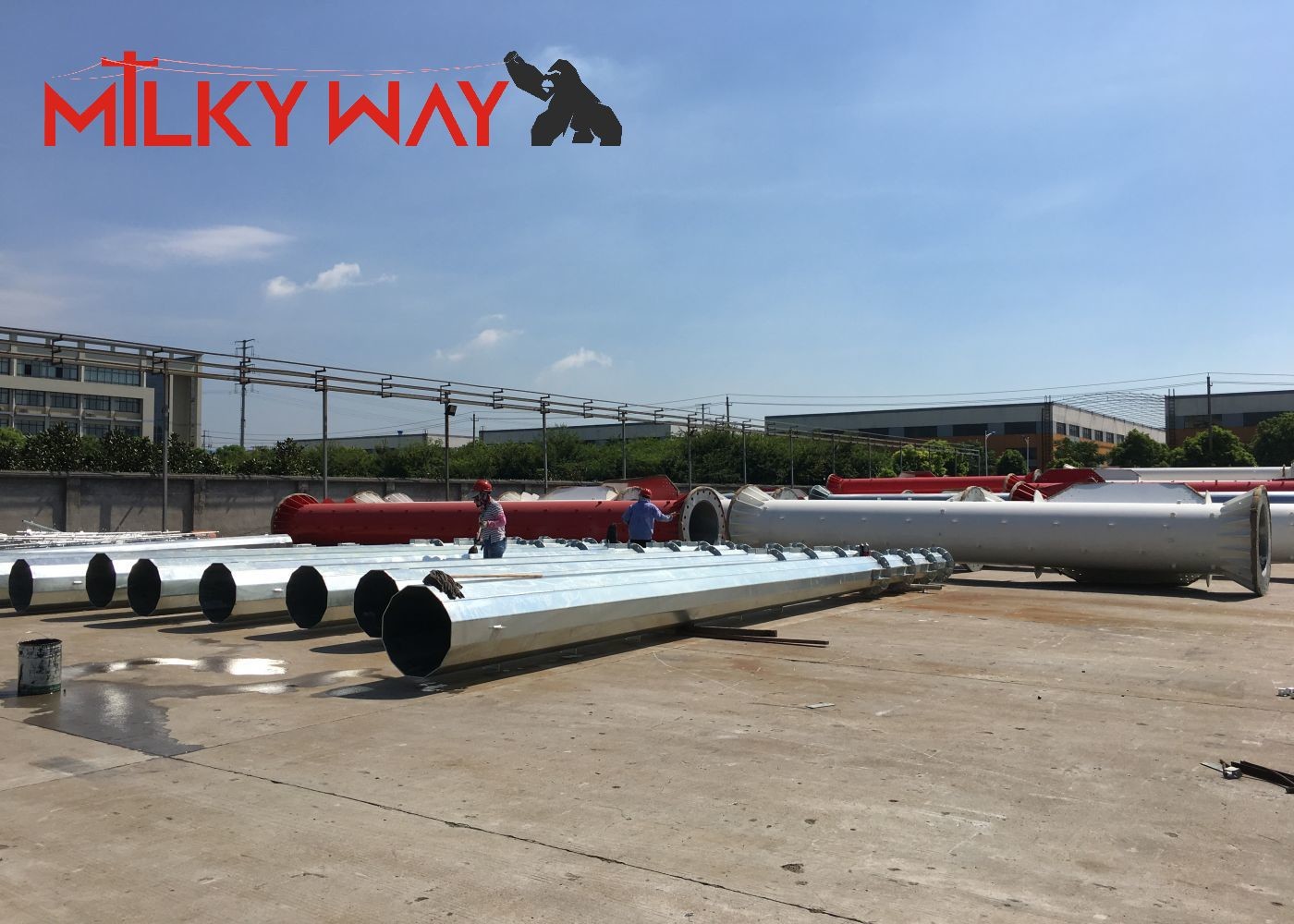

6mm Galvanized Steel Power Transmission Poles
High-performance, long-lasting galvanized steel poles for power transmission applications from 10kV to 220kV.
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Galvanized Power Pole |
| Shape | Octagonal Or Round |
| Power Capacity | 10kV to 220kV |
| Joint of Poles | Slip joint |
| Warranty time | 15 years |
| Thickness | 1 mm to 36mm |
Premium Steel Materials
All materials are sourced from renowned mill factories to ensure superior quality. Each shipment includes:
- Mill certificate with official stamp and signature
- Rigorous chemical and physical analysis before production
- Verified strength and component specifications
Detailed Specifications
| Types | Length | 45ft (13.75m) | 50ft (15.25m) | 55ft (16.80m) | 60ft (18.30m) | 65ft (19.85m) | 70ft (21.35m) |
|---|---|---|---|---|---|---|---|
| B (0°-2°) | Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
| Butt diameter (mm) | 345 | 370 | 395 | 415 | 435 | 455 | |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 | |
| E (2°-15°) | Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
| Butt diameter (mm) | 545 | 585 | 625 | 660 | 700 | 740 | |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
Manufacturing Tolerances
- Component Length: -25mm to 75mm
- Straightness: 2mm/m
- Twisting degree: 1° per 3 meters length
- Ovalisation: Maximum 3%
- Average diameter: +/-0.5%
- Slip length: +/-150mm
Welding Standards
Our welding process meets the highest quality standards:
- Internal and external double welding for superior strength
- Certified flaw testing
- Compliance with AWS (American Welding Society) D 1.1 standard
Surface Treatment
Hot dip galvanized following ASTM A 123 standards. Custom treatments available including color polyester powder coating to meet client requirements.
Company Profile
Jiangsu Milky Way Steel Poles, established in 1991 and located in Wuxi, China, brings over 24 years of expertise in manufacturing:
- Transmission power poles
- Street light poles
- High mast poles
Our products have been exported to over 70 countries worldwide, including major projects such as:
- Street light poles for Dubai Tower
- High mast poles for Sochi Winter Olympic Games
