12m Hot Dip Galvanized Steel Utility Power Pole for Transmission
12m Hot Dip Galvanized Steel Utility Power Pole for Transmission
Basic Properties
Place of Origin:
China
Brand Name:
Milky Way
Certification:
ISO, BV,
Model Number:
Galvanized 9M 10M 11M Electric Steel Utility Power Pole for transmission line
Trading Properties
Minimum Order Quantity:
one 40 HQ
Price:
negotiation
Payment Terms:
T/T
Supply Ability:
300 pieces pole per day
Product Summary
9M 10M 11M Galvanized Electric Steel Utility Power Pole for Electricity Transmission Product Specifications Attribute Value Height 12m Surface treatment hot dip galvanized powder painting Thickness 3mm Optical assembly of lighting fixture IP 65 Tolerance of dimension ± 2% Wind speed 30m/s Technical ...
Product Custom Attributes
Highlight
12m galvanized steel utility pole
,hot dip galvanized power pole
,transmission utility pole with warranty
Height:
12m
Surface Treatment:
Hot Dip Galvanized Powder Paiting
Thickness:
3mm
Optical Assembly Of Lighting Fixture:
IP 65
Torelance Of Dimenstion:
+- 2%
Wind Speed:
30m/s
Product Description
Detailed Specifications & Features
9M 10M 11M Galvanized Electric Steel Utility Power Pole for Electricity Transmission
Product Specifications
| Attribute | Value |
|---|---|
| Height | 12m |
| Surface treatment | hot dip galvanized powder painting |
| Thickness | 3mm |
| Optical assembly of lighting fixture | IP 65 |
| Tolerance of dimension | ± 2% |
| Wind speed | 30m/s |
Technical Details
| System No. | AN-SSL-60w/240w/8m |
|---|---|
| Solar Panel | 2pcs*120Wp 17.5V, polycrystalline PV module, A-class |
| LED Light Source | 60W DC12V, Bridgelux 50MIL led chips, 120LM/W; IP66 guard level |
| Controller | 12V/24V 10A, light/time intelligent control, waterproof, IP68 guard level |
| Battery | 2pcs*12V100AH, sealed lead-acid battery |
| Battery Box | PVC material, including PVC cable tube |
| Pole Set | 8m high, Q235 steel pipe |
| Working time | 10 hours/day (full power lighting), battery capacity providing 3 continuous days backup in cloudy or rainy condition |

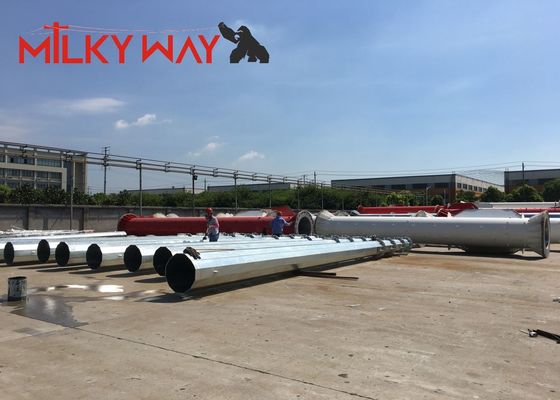

Production Process
Our factory features advanced production equipment including bending calibration machines, hydraulic plate shears, slitting machines, 208T hydraulic straighteners, and more - all dedicated to manufacturing high-quality steel poles.
The fabrication process includes: plate cutting, bending, forming, automatic welding, hole drilling, pre-galvanization quality checks, hot dip galvanizing, powder coating, and final quality inspection according to client specifications.
Solar Street Light Advantages
- System configurations based on scientific calculations and engineering experience, suitable for areas with 4.5hrs average daily peak sunshine
- Battery capacity designed for 3 days backup during cloudy/rainy weather
- Fully customizable configurations based on project requirements and weather conditions
- Recommended battery placement in underground cement pits for temperature regulation, waterproofing, and theft prevention
- Standardized yet customizable pole designs for practicality and economy
- All components CE and ROHS certified, meeting European standards
Product Characteristics
- Customizable pole height to buyer's requirements

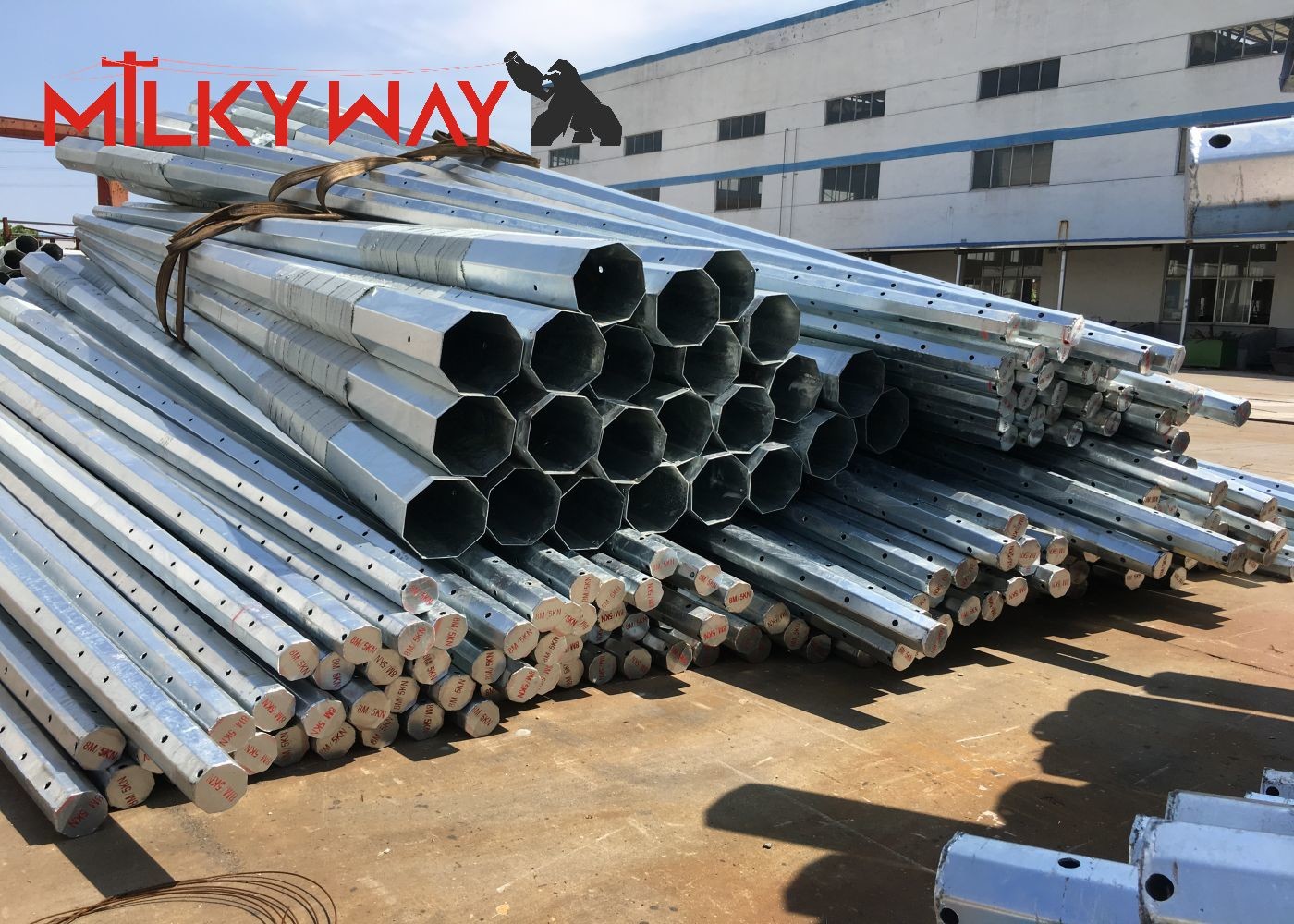

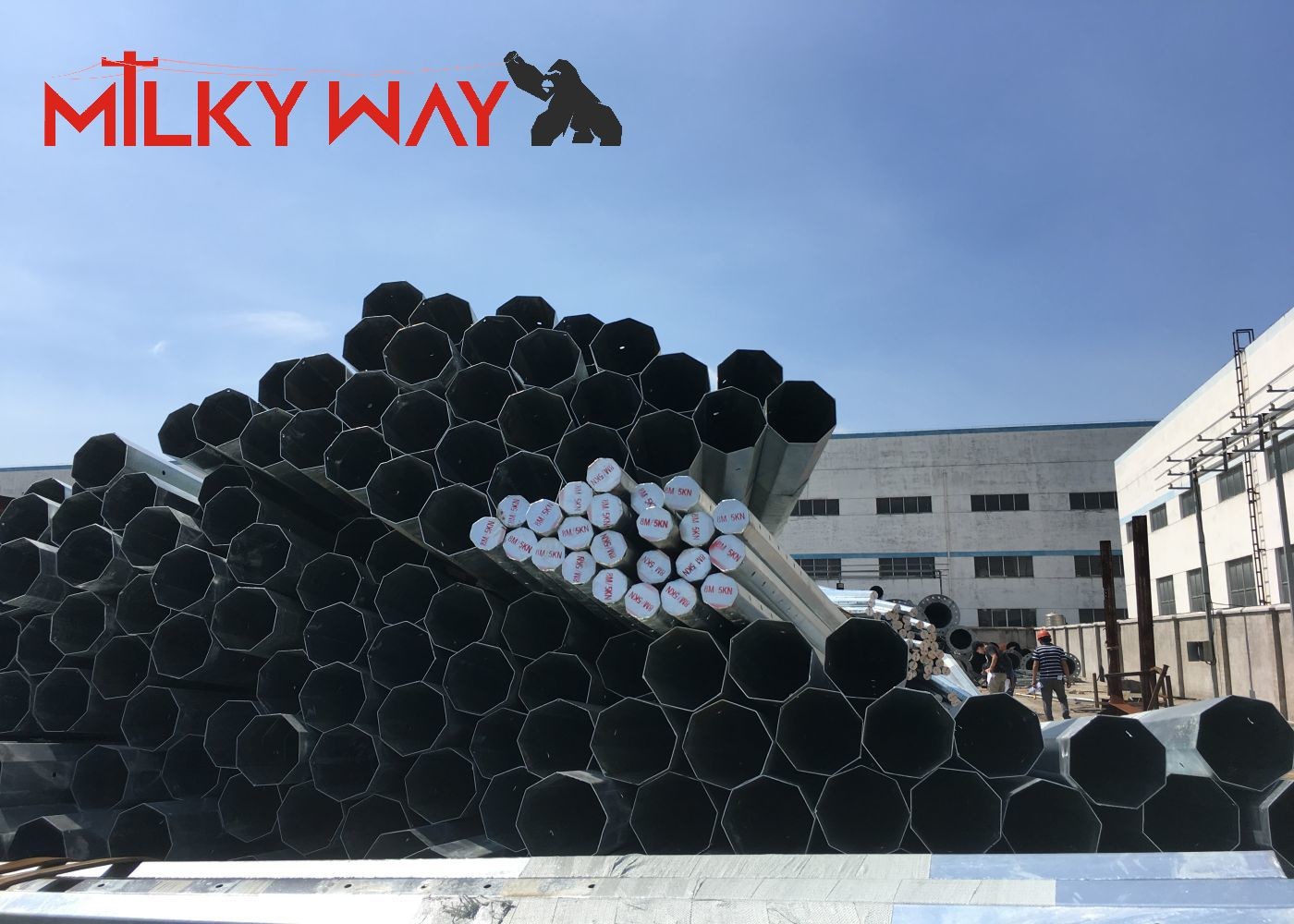

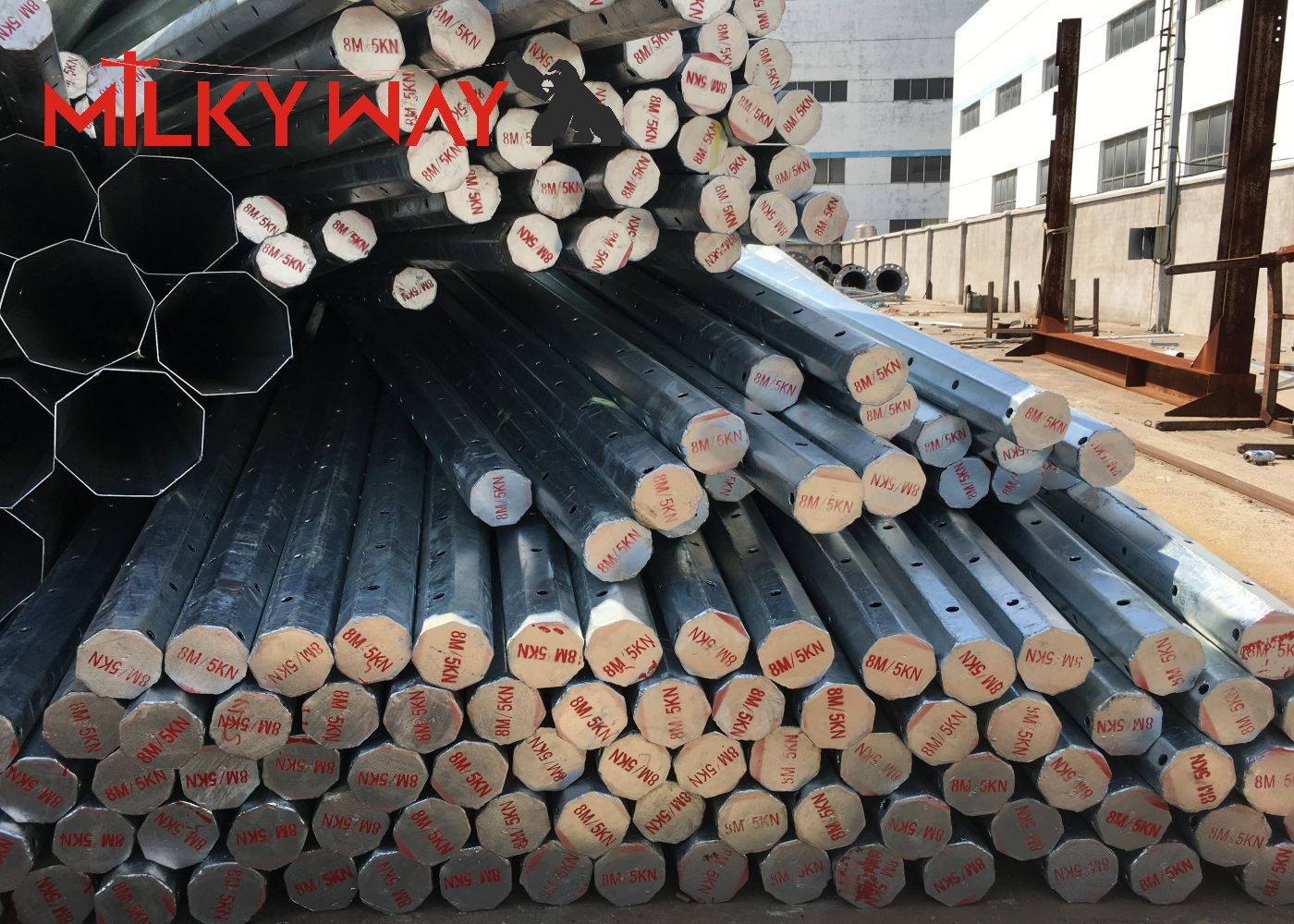

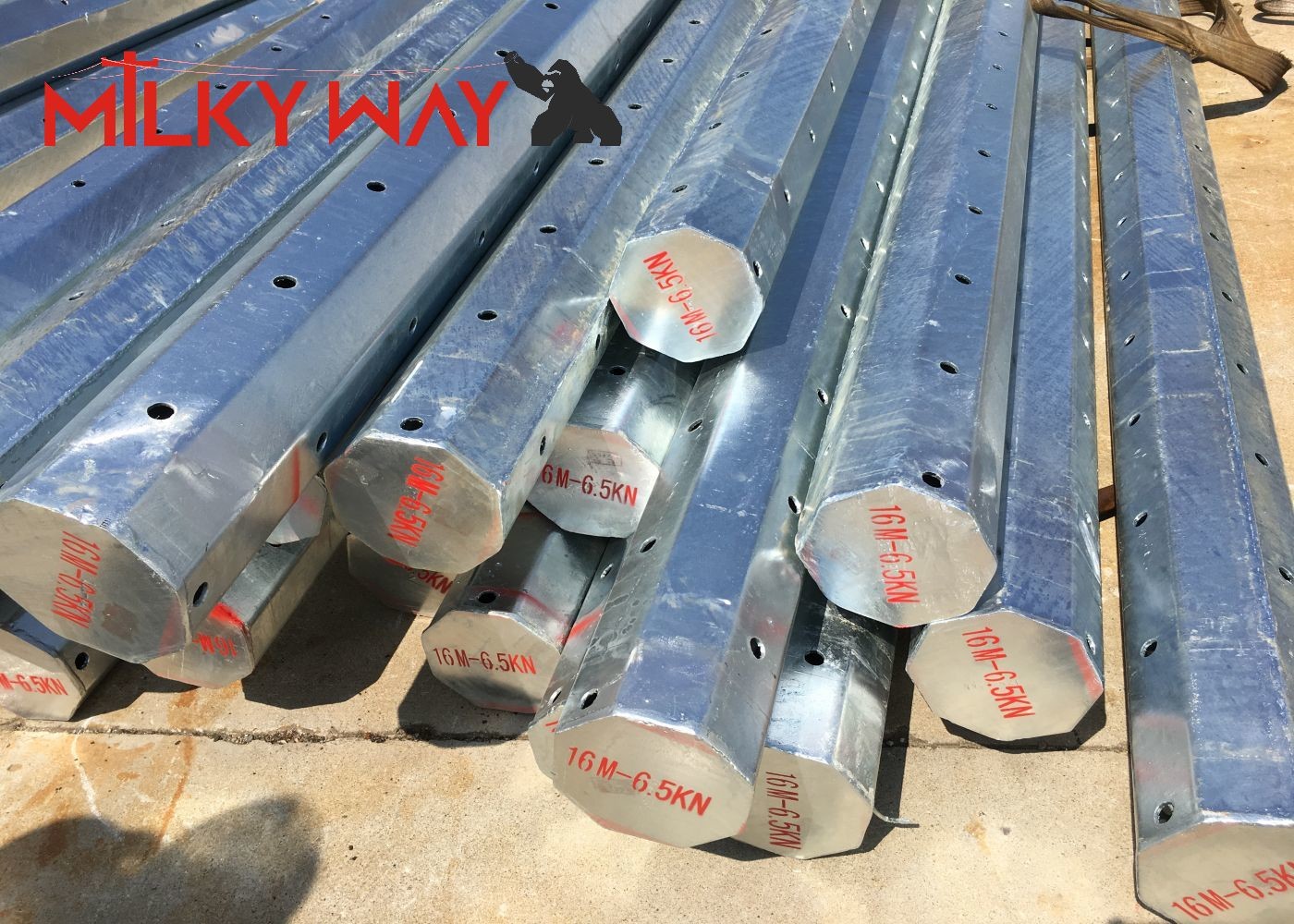

- Available in polygonal, round, or conical designs
- Single, double, or triple arm configurations
- Material options: SS400 or Q235 steel
- Welding meets national standards
- Strict quality control and testing procedures
- Hot dip galvanized with ≥85um zinc coating thickness
- Wind resistant up to 36.8m/s (equivalent to Force 12 typhoon)
- Packing options: bubble film or customized solutions
- Pole thickness range: 2.5mm-6.0mm
