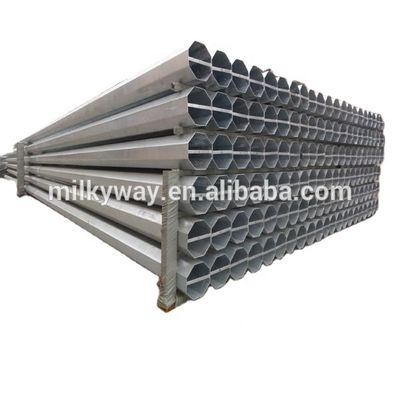

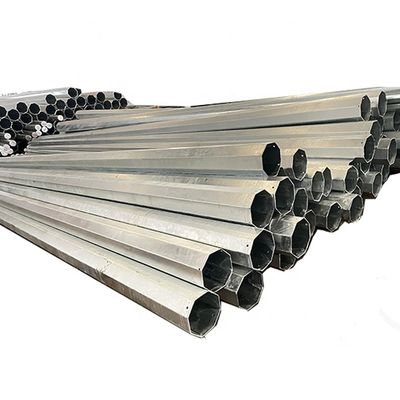

Galvanized Octagonal Steel Street Light Poles
High-quality galvanized steel poles available in 6m, 9m, 12m, 20ft, 25ft, and 30ft lengths with octagonal or round configurations.
Product Specifications
| Type |
450Mpa Min Yield Stress Electrical Power Pole, Cross Arm Galvanised Steel Poles |
| Application |
Electricity distribution |
| Shape |
Conoid, Multi-pyramidal, Columniform, Polygonal or Conical |
| Material |
Q235, Q345, Q420 |
| Power |
10KV ~550KV |
| Design Load |
300~1000Kg applied to 50cm from the top pole |
| Surface Treatment |
Hot dip galvanized (ASTM A 123), color polyester powder, or client-specified standard |
| Joint Types |
Insert mode, inner flange mode, face to face joint mode |
| Seismic Rating |
Designed against earthquake of 8 grade |
| Standard |
ISO 9001 |
| Welding |
Internal and external double welding (AWS D1.1 standard), passed flaw testing |
| Thickness |
2.5mm |
Production Process
Raw Material
All raw materials include mill certificates and undergo elongation tests and chemical composition analysis before production.
Cutting Process
CNC laser cutting precisely shapes materials according to specifications, leaving high-quality surface finishes.
Molding
Steel plates are formed into specified shapes (circular, polygonal, etc.) using precision bending machines.
Welding
Longitudinal welds are performed using AC inverter control with seam-tracking arc-guide mechanisms for perfect alignment.
Galvanization
All poles receive complete hot-dip galvanization (IS2629-1985, BS729-1971 standards) for superior corrosion protection.
Certifications
Company Profile
Jiangsu Milky Way Steel Poles Co., Ltd. - Established in 1991, located in Wuxi, China. Our products are used worldwide in power transmission, signal transmission, and street/road lighting applications.
With over 20 years of manufacturing experience, we've exported to more than 70 countries including USA, Australia, Russia, Germany, Spain, and throughout Asia.

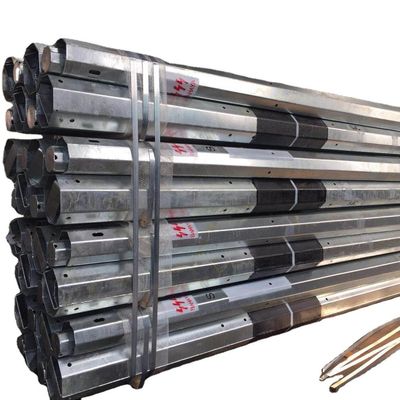

Packing & Delivery
| Packing Size |
40HQ |
| Weight |
26T |
Poles are packed with sea/road-worthy wooden materials. Loading capacity per container varies based on specifications.
Our Services
- 24-hour inquiry response
- Customized designs (UEM&UBM available)
- Professional engineering solutions
- Distributor discounts and sales protection
- 20+ years manufacturing expertise
- Sample availability for large orders
- Superior materials and quality control
Frequently Asked Questions
How can I get a price for needed poles?
Provide exact dimensions (height, thickness, material, diameters) or send drawings for accurate pricing.
Do you accept small orders?
Yes, we work with wholesalers of all sizes and support business growth.
Can you produce custom designed samples?
We welcome custom designs and will work to make your specifications a reality.
How to become an agent?
Submit your business profile and market plan to delia@yin-he.com.
Do you offer door-to-door service?
Yes, we provide complete shipping solutions including customs clearance.
