1. Material :SS400, Q235,A36 (yield strength: 235Pa 24kg/mm2 Tensile Strength: 375-460Pa 38-47kg/mm2 (Other Material is Available on Request)
2. Hot Dip Galvanized (≥86um)
3. Any Color Polyester Powder Coated (≥100 um)
4. Taper Conical , Octagonal, Polygon Section
5. With demounted bracket design,easy loaded,install,and maintenance
6. Theftproof slide lock
7. Category: Street lighting pole, Garden Lighting pole Solar Street lighting pole, High Mast,highmast light poles,

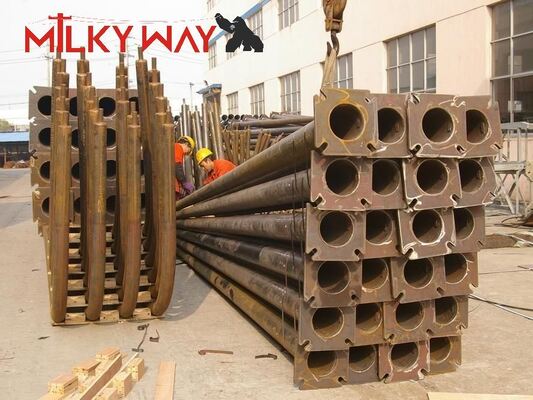

| name10m Galvanized High Mast Outdoor Lamp Pole Highway Light PoleOutdoor Lamp Pole Highway Light Pole |
| Type |
street light pole |
| Shape |
conical, hexagonal and octagonal |
| Material |
Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52 |
| Torlance of dimenstion |
-0.02 |
| Design Load in Kg |
300~ 1000 Kg appliced to 50cm from the to pole |
| Surface treatment |
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
| Standard |
Octagonal Conical tapered column
Certified by SIRIM QAS INTERNATIONAL.
Approved by JABATAN KERJA RAYA MALAYSIA.
Conforms to Standard:
Pole design : BS EN 40
Material : BS EN 10025 S275 / JIS G3101 SS400
Welding : BS 5135
Galvanizing : BS 729 / ISO 1461 ASTM A 123 |
| Length of per section |
Within 14m once forming without slip joint. |
| high mast pole suit for |
city square,wharf,stadium |
| Option of high mast pole |
Height from 20m to 35m
Flange mounted or planted type |
| Production Process of high mast pole |
Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration→Thread →Packages |
1. Prices conditions
Price can be FOB, CIF ,EXW, or With taxes.
2. What will be the delivery time and what will be the mode of payment?
We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.
50K units is available for most of our models in normal color and sizes
The payment can be T/T transaction,Letter of credit,Paypal,Western Union.

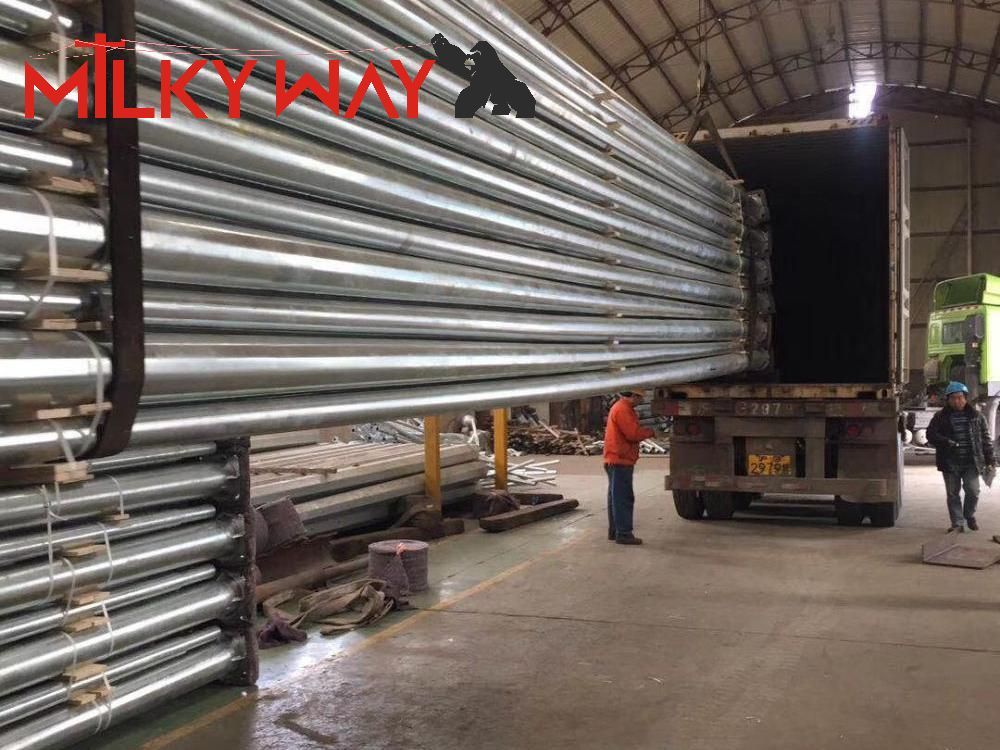

3. Shipment will be over sea or by air?
Generally speaking ,we ship the products by DHL UPS FEDEX express since the products isn’t too heavy for the transportation,
and oversea for led lights,and can be customized by your requirements.
4. Could you please send me the sample for the same. So that i could see and analyze its quality?
Yes. We can send samples first, samples need to be charged if the value is higher.
5. Will there be any contract for this business or trade?
Yes, there is a normal contract before the order is placed
