Galvanized Steel Power Pole with Bitumen Coating and Octagonal Shape Available in 45ft to 70ft Lengths
Galvanized Steel Power Pole with Bitumen Coating and Octagonal Shape Available in 45ft to 70ft Lengths
Basic Properties
Place of Origin:
China
Brand Name:
MilkyWay
Certification:
ISO9001/BV/
Model Number:
Steel Power Pole
Trading Properties
Minimum Order Quantity:
1 pcs
Price:
Negotiation
Payment Terms:
T/T,L/C at sight
Supply Ability:
300pcs per day
Product Summary
Galvanized Steel Power Pole Octagonal Transmission Line Poles High-quality octagonal galvanized steel power transmission poles with bitumen coating, available in lengths from 45ft to 70ft (13.75m to 21.35m). Product Specifications Standard Series Specifications Type / Length 45ft (13.75m) 50ft (15...
Product Custom Attributes
Highlight
Bitumen Coating Steel Power Pole
,Octagonal Shape Transmission Line Pole
,45ft to 70ft Lengths Galvanized Steel Pole
Product Name:
Steel Power Pole
Application:
Power Distribution
Material:
Gr65
Minimum Yield Strength:
460 Mpa
Max Ultimate Tensile Strength:
620 Mpa
Wall Thickness:
1mm-36mm
Product Description
Detailed Specifications & Features
Galvanized Steel Power Pole Octagonal Transmission Line Poles

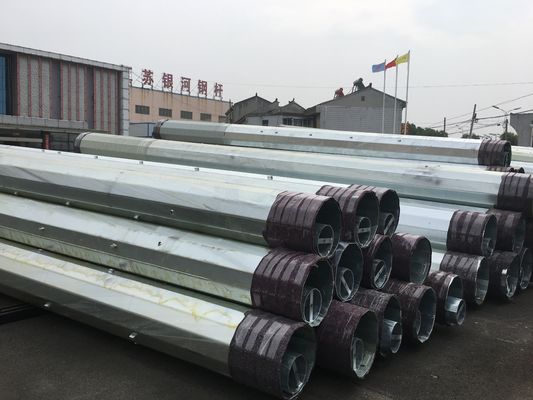

High-quality octagonal galvanized steel power transmission poles with bitumen coating, available in lengths from 45ft to 70ft (13.75m to 21.35m).
Product Specifications
Standard Series Specifications
| Type / Length | 45ft (13.75m) | 50ft (15.25m) | 55ft (16.80m) | 60ft (18.30m) | 65ft (19.85m) | 70ft (21.35m) |
|---|---|---|---|---|---|---|
| B Series (0°-2°) | ||||||
| Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
| Butt diameter (mm) | 345 | 370 | 395 | 415 | 435 | 455 |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
| E Series (2°-15°) | ||||||
| Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
| Butt diameter (mm) | 545 | 585 | 625 | 660 | 700 | 740 |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
| C Series (15°-30°) | ||||||
| Top diameter (mm) | 250 | 250 | 250 | 250 | 250 | 250 |
| Butt diameter (mm) | 600 | 645 | 690 | 730 | 770 | 805 |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
| D Series (30°-90°) | ||||||
| Top diameter (mm) | 300 | 300 | 300 | 300 | 300 | 300 |
| Butt diameter (mm) | 680 | 730 | 725 | 765 | 755 | 790 |
| Thickness (mm) | 6 | 6 | 7 | 7 | 8 | 8 |
Heavy Duty Series Specifications
| Type / Length | 45ft (13.75m) | 50ft (15.25m) | 55ft (16.80m) | 60ft (18.30m) | 65ft (19.85m) | 70ft (21.35m) |
|---|---|---|---|---|---|---|
| HS Series (0°-2°) | ||||||
| Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
| Butt diameter (mm) | 340 | 360 | 385 | 400 | 420 | 440 |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
| HT Series (2°-15°) | ||||||
| Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
| Butt diameter (mm) | 485 | 520 | 550 | 580 | 615 | 645 |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
| 3T Series (15°-30°) | ||||||
| Top diameter (mm) | 250 | 250 | 250 | 250 | 250 | 250 |
| Butt diameter (mm) | 520 | 540 | 565 | 595 | 615 | 640 |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
| 3D Series (30°-90°) | ||||||
| Top diameter (mm) | 300 | 300 | 300 | 300 | 300 | 300 |
| Butt diameter (mm) | 585 | 620 | 650 | 680 | 715 | 765 |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
Material Description
- Poles manufactured by high-quality metal plants, molded into multi-row cone-shaped vertical steel bars with hot galvanized anti-corrosion treatment
- Light plate frame constructed from high-quality stainless steel
- Fastened bolts and nuts made of stainless steel for enhanced durability
Our Service Commitment
• 24-hour response to all inquiries
• Experienced English-speaking staff providing comprehensive support
• Customized design available with UEM & UBM welcome
• Exclusive solutions from professional engineers and staff
• Special discounts and sales protection for distributors
• Professional manufacturing with over 20 years of steel pole production experience
• Sample availability for testing with shipment charge rebate on formal orders
• Superior raw materials, advanced machinery, and skilled technicians ensuring high-quality products
Company Introduction
Jiangsu Milky Way Steel Poles, established in 1991 and located in Wuxi, East China near Shanghai Port, brings over 24 years of expertise in steel pole manufacturing. Our product range includes transmission power poles, street light poles, and high mast poles.
Since 1991, we have exported to over 70 countries worldwide including America, Australia, Russia, Germany, Spain, Philippines, Malaysia, and Africa. We are proud suppliers for major international projects such as the Dubai Tower street light poles and Sochi Winter Olympic Game high mast poles.
