Home /Products/Steel Power Pole/High Strength S500MC Steel Power Pole with Hot Galvanized Surface and Stainless Steel Fastened Bolts for Electricity Networks

High Strength S500MC Steel Power Pole with Hot Galvanized Surface and Stainless Steel Fastened Bolts for Electricity Networks

1 container
MOQ
Negotiation
Price
High Strength S500MC Steel Power Pole with Hot Galvanized Surface and Stainless Steel Fastened Bolts for Electricity Networks
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Steel Power Pole
Application: Distribution Line
Material: S500MC
Minimum Yield Strength: 500 Mpa
Max Ultimate Tensile Strength: 620 Mpa
Wall Thickness: 3.5mm 4mm
Highlight:

High Strength S500MC Steel Power Pole

,

Hot Galvanized Surface Steel Power Pole

,

Stainless Steel Fastened Bolts Electric Utility Pole
Basic Infomation
Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/
Model Number: Electric Steel Power Pole
Payment & Shipping Terms
Packaging Details: As customer request
Delivery Time: 30 working days after received your payment
Payment Terms: T/T,L/C at sight
Supply Ability: 300pcs per day
Product Description
High Strength Steel Power Pole
Ghana 10m, 11m, 12m, 15m Class 2 & Class 3 steel power poles manufactured from S500MC steel with hot-dip galvanized anti-corrosion treatment for electricity distribution networks.
Material Construction
  • Poles manufactured by high-quality metal plants, molded into multi-row cone-shaped vertical steel bars with hot galvanized anti-corrosion treatment
  • Light plate frame constructed from high-quality stainless steel
  • Fastened bolts and nuts made of stainless steel for enhanced durability

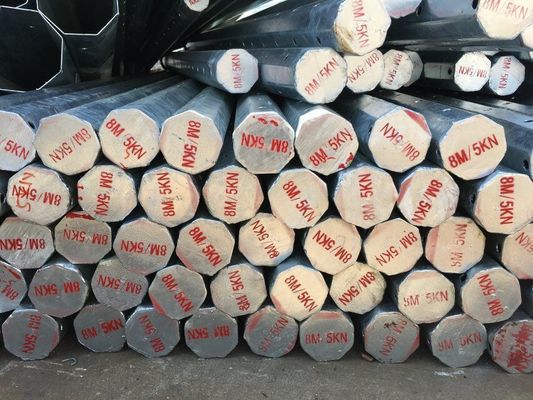

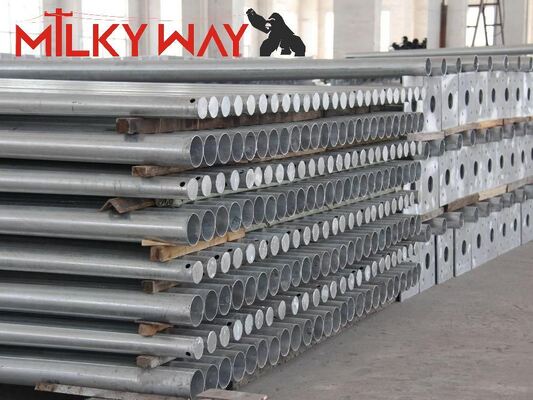

High Strength S500MC Steel Power Pole with Hot Galvanized Surface and Stainless Steel Fastened Bolts for Electricity Networks 0
Technical Specifications
Application Electricity distribution
Shape Conoid, Multi-pyramidal, Columniform, Polygonal or Conical
Material Q345B/A572 (minimum yield strength ≥345N/mm²)
Q235B/A36 (minimum yield strength ≥235N/mm²)
Hot rolled coil from Q460, ASTM573 GR65, GR50, SS400, SS490 to ST52
Dimension Tolerance ±2%
Power Capacity 10KV ~ 550KV
Safety Factor Conducting wire: 8
Grounding wire: 8
Design Load 300~1000kg applied to 50cm from top of pole
Marking Name plate via rivet or glue, engraving, embossing as per customer requirements
Surface Treatment Hot dip galvanized following ASTM A123, color polyester powder or client-specified standards
Joint Types Insert mode, inner flange mode, face to face joint mode
Seismic Design Against earthquake of 8 grade
Wind Speed Rating 160 Km/Hour (30 m/s)
Minimum Yield Strength 355 MPa
Tensile Strength Minimum: 490 MPa
Maximum: 620 MPa
Quality Standard ISO 9001
Section Length Within 14m once forming without slip joint
Welding Internal and external double welding with beautiful shape
Welding Standard: AWS (American Welding Society) D1.1
Passed flaw testing
Thickness Range 1mm to 30mm
Production Process
  • Raw material test
  • Cutting
  • Bending
  • Welding (longitudinal)
  • Dimension verification
  • Flange welding
  • Hole drilling
  • Sample assembly
  • Surface cleaning
  • Galvanization or powder coating, painting
  • Recalibration
  • Packaging
Packaging
Poles covered with mat or straw bale at top and bottom, or according to client requirements. Loading capacity per 40HC or OT container calculated based on client specifications.
Name Plate
High Strength S500MC Steel Power Pole with Hot Galvanized Surface and Stainless Steel Fastened Bolts for Electricity Networks 1
Quality Control
We strictly follow ISO9001-2008 standards. Quality is prioritized at every production stage to ensure product compliance with specifications. Highly trained inspection engineers conduct careful inspections from raw material to finished product and delivery.
High Strength S500MC Steel Power Pole with Hot Galvanized Surface and Stainless Steel Fastened Bolts for Electricity Networks 2
Tag:

electric utility poles

steel utility poles

metal power poles
