Steel Power Pole 12m Height Hot Dip Galvanized with Minimum Breaking load 2.5KN 10KN 20KN
12m steel power pole
,hot dip galvanized power pole
,steel power pole 20KN load
Specification
| Available height | 12m |
| Electric pressure | 10kv--550kv |
| Material | Q345B/A572,minimum yield strength>=345MPA, Q235B/A36,minimum yield strength>=235MPA |
| Galvanized | Hot dip galvanization,thickness is>=12um |
| Delivery lead time | 30 days after receiving 30% deposit |
| Lifetime | Minimum 25 years |

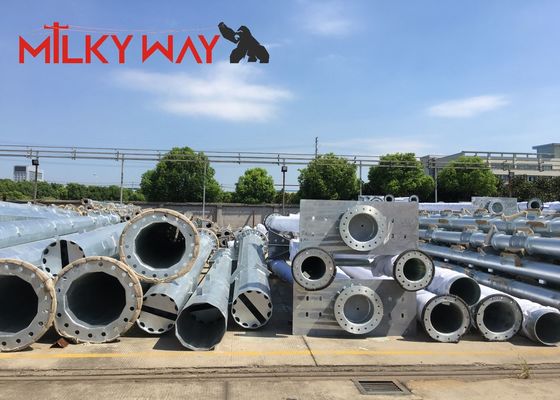

| Structure | Overlap connection/Flange connection |
| Galvanizing standard | EN ISO 146,ASTM/A123 |
| Manufacturing and workmanship | BS449 or AISC |
| Welding standard |
BSEN287,BSEN288 or equivalent |

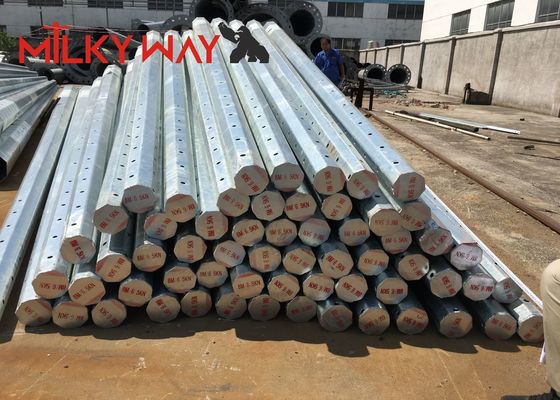

Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole ,anyway also can following by client required , The loading capacity of 40HC or OT an be calulated calculation base on the client actually specification and data.
As an BV ,ISO , approved supplier in China ,we have more than 20 years produce and export steel pole ,and we can assure the pole we offered is of sound quality which made from qualified material with our professional workers and advance equipment .
Material
All of our material are purchased from famous mill factory to assure the quality
- A mill certificate issued by the mill factory with stamp and signature must be provided before unload the material in our factory ,otherwise we have our reason to refuse the material .
- Before put into production ,all the material must pass the chemical and physical analysis to make sure that they have meet the requested strength and component.
To assure our products qualified ,we take steps as follows :
1. Management team : We have employ the foreign export to take chaege of the overall managemnt ,especailly the technical managemnt and quality management .
2.Introducing ISO management ,We are awared ISO 9001:2008 certificate . .
3.QC Inpection:It is our company policy that all the finish product should be inspected by our specialzed QC in every manufacure steps and beofore every shipment
Company Information
Established in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.
We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia , Dominica, Congo, Togo and Guniea so on.
