Multisided 40M 12 Lamps Galvanized High Mast Pole for Plaza Lighting with Lifting System

1 pcs
MOQ
Negotiation
Price
Multisided 40M 12 Lamps Galvanized High Mast Pole for Plaza Lighting with Lifting System
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: High Mast Pole
Application: Airport Lighting
Galvanization Standard: ASTM A 123
Material: Q345
Lift Time: 50 Years
Standard: ISO
Highlight:

high mast lighting pole

,

Sports Light Poles
Basic Infomation
Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/
Model Number: High Mast Pole
Payment & Shipping Terms
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Product Description

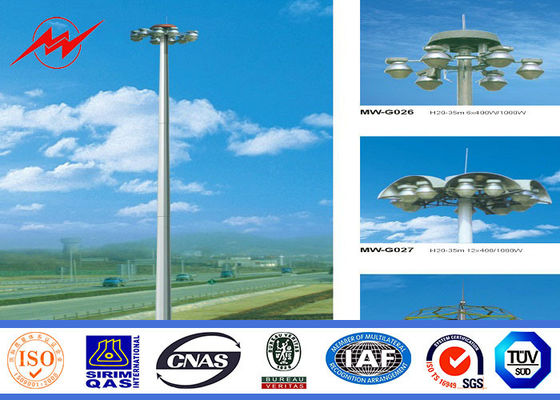

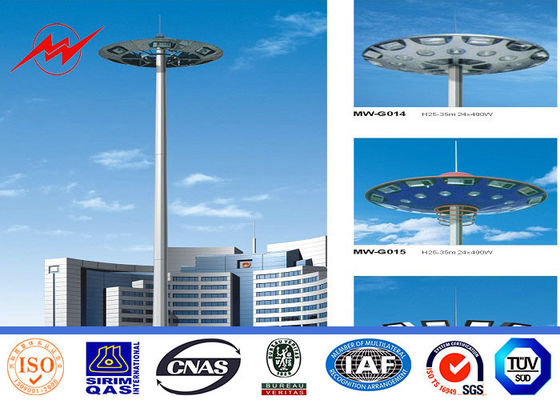

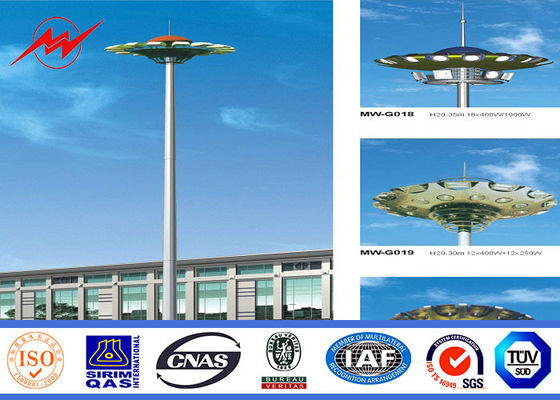

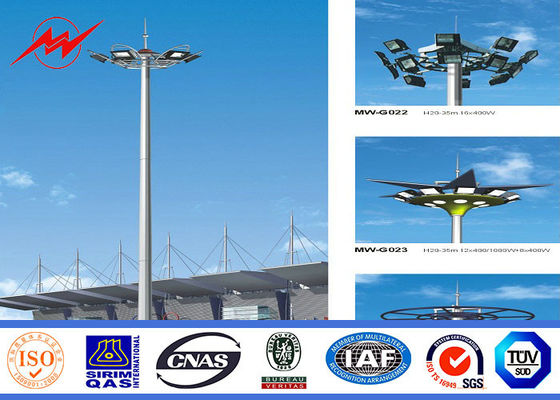

Multisided 40M 12 Lamps Galvanized High Mast Pole for Plaza Lighting with Lifting System





 Specifications:





Height

From 20m to 55m

Suit for

Airport ,seaport,plaza,stadium ,square,highway,

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
              Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-

Lamp power

20 W- 400 W (HPS/MH)
220V (+-10%) /50Hz

Electroshock resistant protective grade

Grade  Ⅰ

The casing anti-corrosion performance

Class Ⅱ

Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required.

Joint of Poles

Insert mode,innerflange mode,face to face joint mode

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm




 1.Height: 20 m ~ 80 m.
 2.Max length per section: 14 m
 3.Thickness: 2.5mm ~ 30 mm
 4.Shape: Conical or polygongal tapered
 5.Material: Q235B/A283 M Gr.C / SS400/S235 JR / St 37-2 / Fe 360
 Q345B/A572 M Gr. 50/S355 JR / ST 52-3/Fe 510
 6.Lamp Power: 250W ~ 2000W (HPSL / MH)
 7.Lifting system:Lifter fixed in the inner of the pole with lifting speed of 3 ~ 5 meter per minute
 Euqiped with ectromagnetism brake and break-proof device, manual opeation applied under power cut.
 8.Head frame: Our headframe can be designed as per customer requirment to carry camera or industrial  antenna.
 9.Finish: hot dipgalvanization, blasting, powder coating, painting.
 10.Galvanization standard: ASTMA 123 / EN ISO 1461
 11.Welding: AWS D 1.1 / BS EN 1011-1, BS EN 1011-2



 Multisided 40M 12 Lamps Galvanized High Mast Pole for Plaza Lighting with Lifting System 0







 More Photos:

 The lifting system



 Multisided 40M 12 Lamps Galvanized High Mast Pole for Plaza Lighting with Lifting System 1







 Company History:


 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.





Multisided 40M 12 Lamps Galvanized High Mast Pole for Plaza Lighting with Lifting System 2
