6m-30m Q235, Q345 or SS400 high quality Hot rolled steel pole


                          6m-30m Q235, Q345 or SS400 high quality Hot rolled steel pole

  key spectification

1. Material: Q235, Q345 or SS400 high quality Hot rolled steel or any special request is available.

2. Mounting Height: 3-20M Optional Mounting Height

3. Shape: Round conical; Octagonal conical; Straight Square; Polygonal; Tapered round

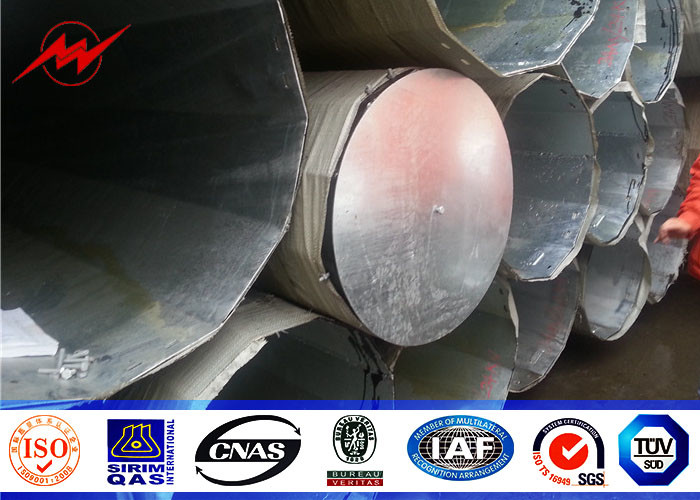

Shafts are made of steel sheet that folded into required shape and welded longitudinally by automatic arc welding machine

4. Brackets: Single or double brackets are in the shape and dimension as per customers requirement

5. Base plate: Base plate is square or round and size as customers' requirement

6. Base plate mounted: Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement

7. Ground mounted: The length buried underground as per customers requirement

8. Anticorrosion methods: Hot dip galvanized steel or hot dip galvanized with Plastic Powder Coating.

9. Shape: Round conical; Octagonal conical; Straight Square; Polygonal; Tapered roundGalvanizing: Hot dip galvanization with thickness of 80-100µm average

10. Powder coating: Pure polyester powder painting, color is optional

11. Other features: Short construction cycle, less land occupation, low overall cost and easy maintenance

12. Welding: Welding confirms with international welding standard of CWB

13. Certificate: ISO9001-2015

14. We don't have standard products, so we need customer's drawings and request.



our company


Jiangsu Milky Way Steel Poles Co.,Ltd.
Estabilshed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi ,East of China ,near one of the largest sea port of China ,Shanghai ,Port .

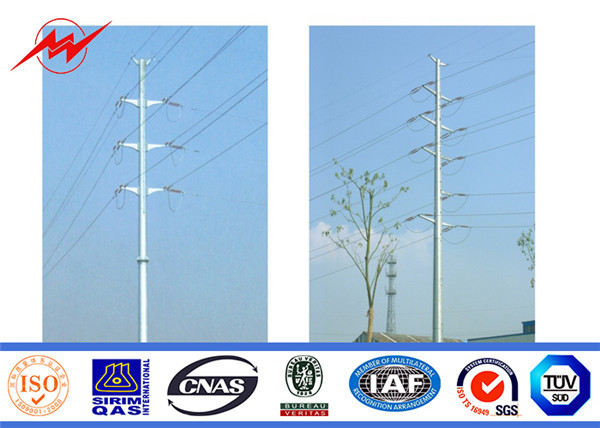

Our Products have been widely used in the power transmission ,signal transmission and lighting for street ,road ,square ,palaestra . and so on
We have plenty of export experience . Since our first overseas order from Pakistan in 1991 of 132 KV transmission poles ,our products have been deliveried to more than 70 countries and areas ,including America ,Australia ,Russia ,Genmery ,Span, Philippines ,Malaysia and so on
As an BV ,ISO , approved supplier in China ,we have more than 20 years produce and export steel pole ,and we can assure the pole we offered is of sound quality which made from qualified material with our professional workers and advance equipment .


installation

-Remove all the equipment on the pole during Assembly.
-Circle a sling around th epole shaft of each section.
-Fix the sling on top section to one pulley block.
-The sling on the bottom section is tightly fixed and fixed at the center of gravity.
-Make the steel pole vertical by tighten the sling of the top section.
-Fix the steel pole.
-Remove the sling.

Our Service

Pres-Sales Service                                                                              After-Sales Service

* Inquiry and consulting support.                                                               * Training how to install the pole
* Sample testing support.                                                                          * Engineers available to arrange overseas.
* View our Factory.

information to inqury

-Steel pole height
-Dimension of the flange
-Position and dimension of the service door
-Cross arm type and length,the position to install in the steel pole
-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)
-Wind speed
-Destination port
-Other.
