11m Q345 Gr65 Material 110kv Utility Transmission Pole Tapered

1*40 HQ
MOQ
negotiation
Price
11m Q345 Gr65 Material 110kv Utility Transmission Pole Tapered
Features Gallery Product Description Request A Quote
Features
Specifications
Galvanization Standard: ASTM A123
Surface: Hop Dip Galvanization
Thickness: Customized
Material: Q345, Gr65, S500
Tolerance: +/-2%
Design Load In Kg: 300~ 1000 Kg Applicated To 50cm From The To Pole
Highlight:

11m utility transmission pole

,

110kv utility transmission pole

,

tapered electric transmission pole
Basic Infomation
Place of Origin: China
Brand Name: Milky Way
Certification: /BV/ISO
Model Number: 11m Q345 Gr65 material 110kv manufacturing steel pole for transmission line
Payment & Shipping Terms
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T, L/C
Supply Ability: 300 pieces pole per day
Product Description



11m Q345 Gr65 material 110kv manufacturing steel pole for transmission line





To assure our products qualified ,we take steps as follows :

Management team We have employ the foreign export to take charge of the overall management ,especially the technical management and quality management
Certificate Introducing ISO management ,We are award ISO 9001:2008 certificate
QC inspection It is our company policy that all the finish product should be inspected by our specialized QC in every manufacture steps and before every shipment

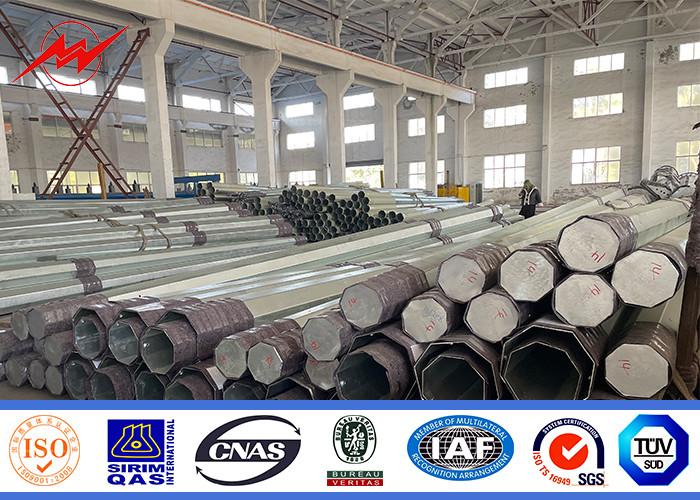

11m Q345 Gr65 Material 110kv Utility Transmission Pole Tapered 0



Production Process

Raw material test → Cutting→Molding or bending →Welding (longitudinal )→Dimension verify→Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages

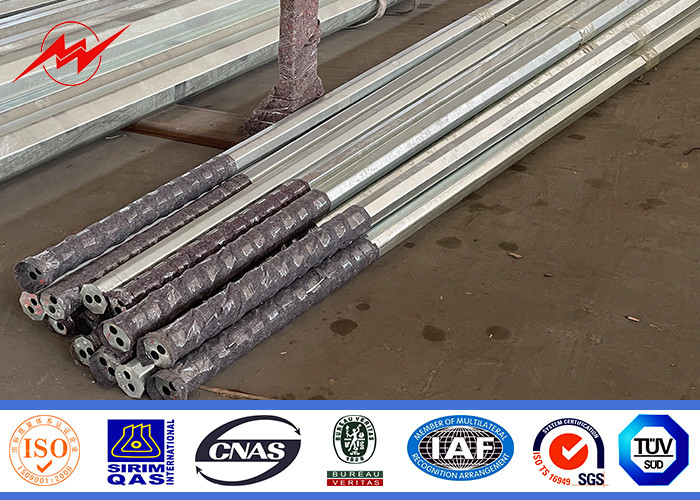

11m Q345 Gr65 Material 110kv Utility Transmission Pole Tapered 1



Features

  We can supply the product base on client required drawing ,but also can supply the design for any kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole
Matercial Hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3
Surface Hot dip galvanized Following ASTM A 123 or any other stardand by client required
Packing Plastic bulble , Mat &Straw Bale or following client required
Length within 16meters once forming( single section)
Thickness From 1mm to 25mm
Shape Polygonal(6-side,8side,12-side,16side) round tapered.

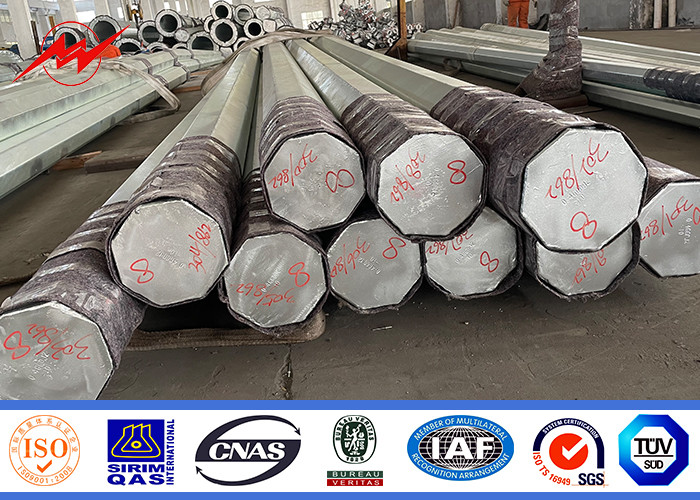

11m Q345 Gr65 Material 110kv Utility Transmission Pole Tapered 2



Installation

1 Remove all the equipment on the pole during Assembly
2 Circle a sling around th epole shaft of each section
3 Fix the sling on top section to one pulley block.
4 The sling on the bottom section is tightly fixed and fixed at the center of gravity
5 Make the steel pole vertical by tighten the sling of the top section
6 Fix the steel pole
7 Remove the sling

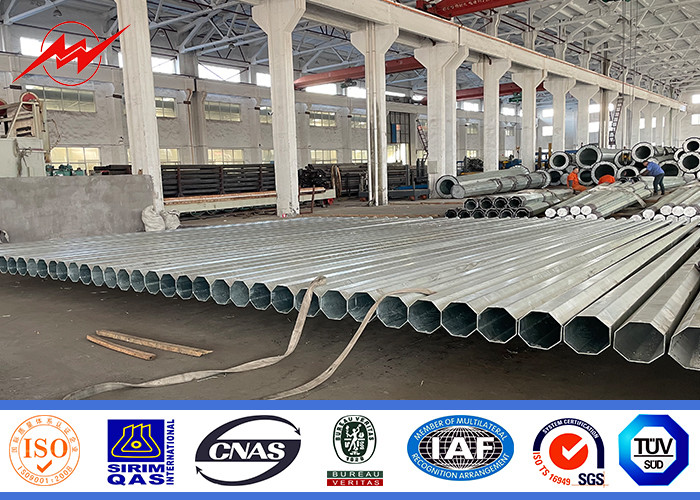

11m Q345 Gr65 Material 110kv Utility Transmission Pole Tapered 3
