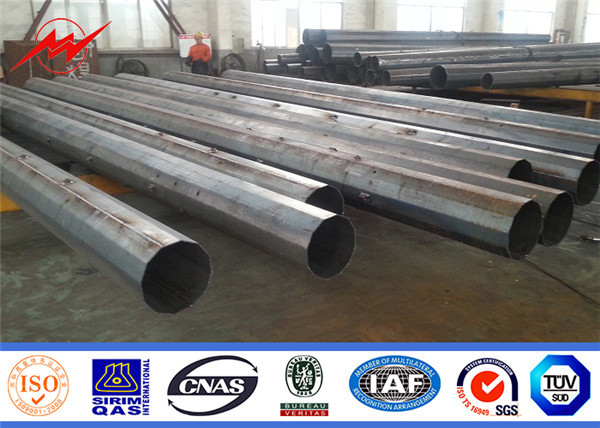

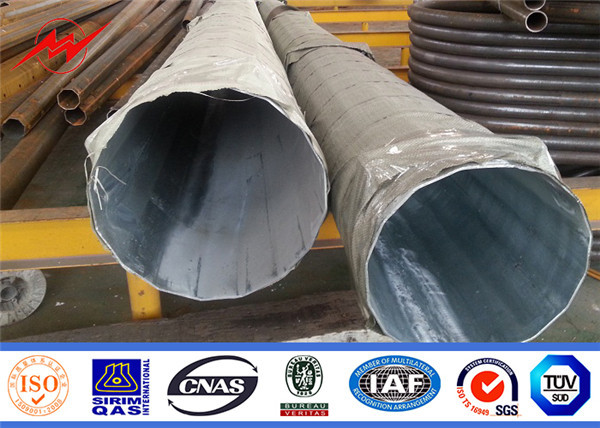

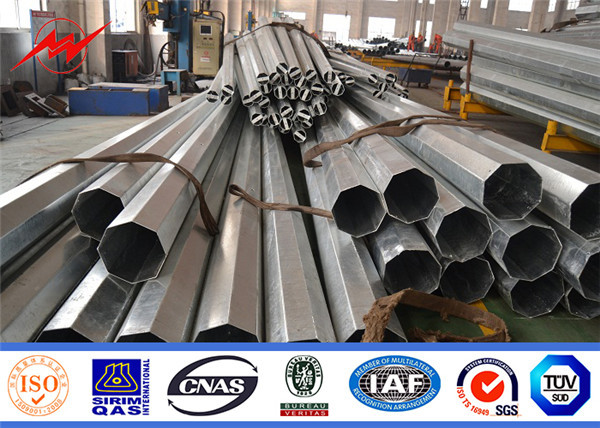

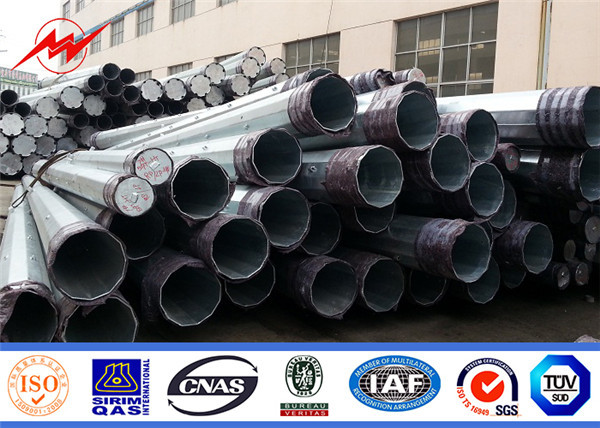

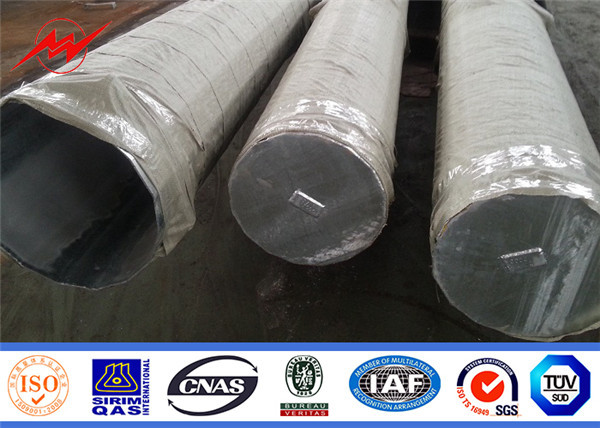

32m Steel Power Pole Galvanized Electric Transmission
32m steel power pole
,electric transmission steel power pole
,32m metal power pole
32m Galvanized electric power transmission steel pole/Steel Tubular Pole/steel tower
Specifications:
|
Types Length |
45ft | 50ft | 55ft | 60ft | 65ft | 70ft |
| 13.75m | 15.25m | 16.80m | 18.30m | 19.85m | 21.35m | |
| B ( 0°-2°) | ||||||
| Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
| Butt diameter (mm) | 345 | 370 | 395 | 415 | 435 | 455 |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
| E ( 2°-15°) | ||||||
| Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
| Butt diameter (mm) | 545 | 585 | 625 | 660 | 700 | 740 |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
| C ( 15°-30°) | ||||||
| Top diameter (mm) | 250 | 250 | 250 | 250 | 250 | 250 |
| Butt diameter (mm) | 600 | 645 | 690 | 730 | 770 | 805 |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
| D ( 30°-90°) | ||||||
| Top diameter (mm) | 300 | 300 | 300 | 300 | 300 | 300 |
| Butt diameter (mm) | 680 | 730 | 725 | 765 | 755 | 790 |
| Thickness (mm) | 6 | 6 | 7 | 7 | 8 | 8 |
| HS ( 0°-2°) | ||||||
| Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
| Butt diameter (mm) | 340 | 360 | 385 | 400 | 420 | 440 |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
| HT ( 2°-15°) | ||||||
| Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
| Butt diameter (mm) | 485 | 520 | 550 | 580 | 615 | 645 |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
| 3T ( 15°-30°) | ||||||
| Top diameter (mm) | 250 | 250 | 250 | 250 | 250 | 250 |
| Butt diameter (mm) | 520 | 540 | 565 | 595 | 615 | 640 |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
| 3D ( 30°-90°) | ||||||
| Top diameter (mm) | 300 | 300 | 300 | 300 | 300 | 300 |
| Butt diameter (mm) | 585 | 620 | 650 | 680 | 715 | 765 |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
Descripition of material:
1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped vertical steel barwith hot galvanized anti-corrosion treatment
2. Light plate frame is made by high-quality stainless steel
3. Fastened bolts and nuts of stainless steel
Our Service:
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity.
7 Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is sually paid by your side, the charges will be rebounded when we have formal order.
8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
