High-Performance Utility Power Poles For Residential Subdivisions And Commercial Areas

one 40 HQ
MOQ
negotiation
Price
High-Performance Utility Power Poles For Residential Subdivisions And Commercial Areas
Features Gallery Product Description Request A Quote
Features
Specifications
Style: Galvanization
Surface Treatment: Hot Dip Galvanized
Design Load In Kg: 300~ 1000 Kg Appliced To 50cm From The To Pole
Power: 10 KV ~550 KV
Torelance Of Dimenstion: +- 2%
Wind Speed: 160km/h, 30m/s
Highlight:

High Performance Utility Power Poles

,

Residential Subdivisions Utility Power Poles

,

Commercial Areas Utility Power Poles
Basic Infomation
Place of Origin: China
Brand Name: Milky Way
Certification: ISO, BV,
Model Number: 10m 500Dan Galvanized Steel Utility Pole For 110kv Transmission Line
Payment & Shipping Terms
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
Product Description



10 M 500dan Galvanized Steel Utility Pole 110kv Metal Light Pole



Specification



Technical parameters

1. Height(M):9m

2. Hot dip galvanized, color polyester power or any other standard by client required.

3. Welding reached national standards

4. Form without slip joint.

5. Steel, Q235, conical ,octagonal or polygonal.

6. Type: conical, octagonal, or polygonal ,mid-hinged ,taped and other shapes

7. Thickness:2-4mm

8. Arm: single arm, double arms ,three arms or four arms

9. Application: street ,road ,highway, park ,factory ,school Roadway Residential subdivisions Commercial development and so on

Production Process

Raw material test → Cutting →Molding or bending →Welding(longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages

Customer choice

1. Height from 6m to 12m

2. Flange mounted or planted type

3. Variable arm length with single or double arm type

4. Variable spigot size

5. Designed for various kinds of application

Package

1. Plastic foam and nylon bag,or upon your request

Delivery

1. 30days after receiving the deposit

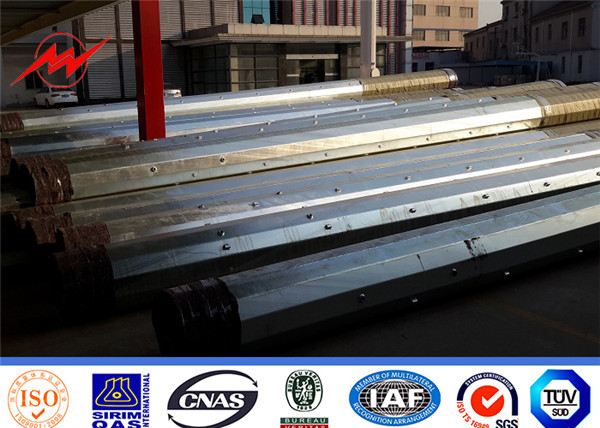

High-Performance Utility Power Poles For Residential Subdivisions And Commercial Areas 0



Key Process



The fabrication process as cutting plate, bending/forming, automatic welding, drill holes, quality check before galvanized, hot dip galvanized , recalibration, inspect according to client’s required then delivery on time as Constract.



(1)Material Preparation→(2)Bending→(3)Welding→(4)Repair and Grinding→(5)Reforming→(6)Flushing→(7)Fix bottom plate→(8)Welding bottom plate→(9)Opening door→(10)Welding door strip, electric strip, and locking→(11)Bending arm→(12)Hot dip galvanization→(13)Plastic powder painted→(14)Inspection→(15)Shipment





Applied to the material of general-purpose steel GB/T1591-2008, ASTM A36, ASTM A572.

Q235 used in China , which equivalent to SS400, ASTM A36.

Q345 used in China, which equivalent to S355JR. Gr 50. Min Yield Stress 345 Mpa.

Q460 used in China , which Gr65.

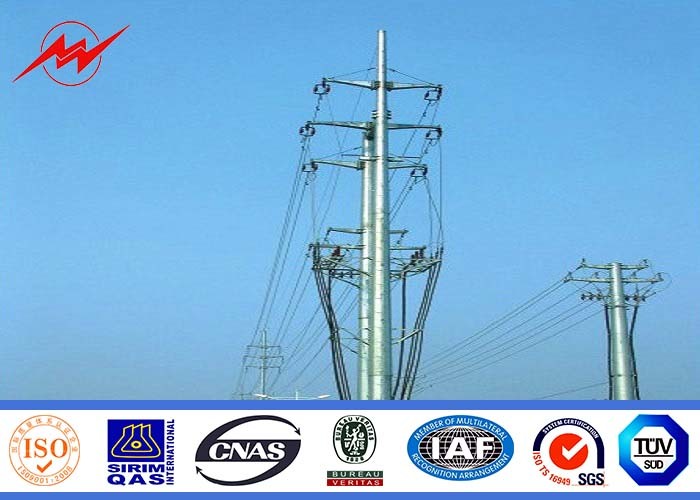

High-Performance Utility Power Poles For Residential Subdivisions And Commercial Areas 1





Our Services


1. Factory direct sale.

2. Industry and trade integration business.

3. 15 years experience.

4. Various designs.

5. ODM, OEM acceptable.

6. Flexible payment.

7. Fast, accurate quotes.

8. Our good service.

9. Technical support by e-mail.

10. Calling service.

11. Provide maintenance instruction video.

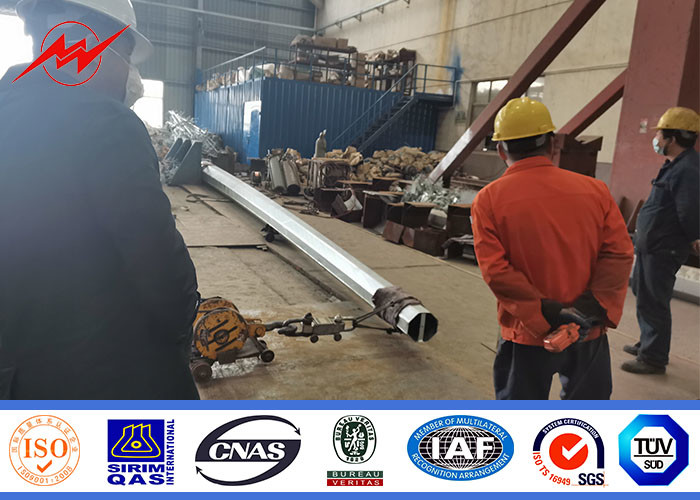

High-Performance Utility Power Poles For Residential Subdivisions And Commercial Areas 2
