11KV 38KV Hot Dip Galvanized Electric Power Pole with ISO 9001 Certification and IP 65 Rating for High Wind Speed 160km/h
11KV 38KV Hot Dip Galvanized Electric Power Pole with ISO 9001 Certification and IP 65 Rating for High Wind Speed 160km/h
Basic Properties
Place of Origin:
China
Brand Name:
Milky Way
Certification:
ISO, BV,
Model Number:
multi sided galvanized steel utility distribution power poles for electrical project
Trading Properties
Minimum Order Quantity:
one 40 HQ
Price:
negotiation
Payment Terms:
T/T
Supply Ability:
300 pieces pole per day
Product Summary
11KV 38KV Hot Dip Galvanized Electric Power Pole High tensile strength octagonal utility poles with flaw testing and ISO 9001 certification. Product Specifications Minimum yield strength 355 mpa Minimum ultimate tensile strength 490 mpa Max ultimate tensile strength 620 mpa Standard ISO 9001 Length ...
Product Custom Attributes
Highlight
ISO 9001 Certified Electric Power Pole
,IP 65 Rated Utility Power Pole
,High Wind Speed Steel Power Pole
Type:
Straight Pole, Tensile Pole, Turn Pole
Surface Treatment:
Hot Dip Galvanized
Thickness:
1mm To 30mm
Optical Assembly Of Lighting Fixture:
IP 65
Torelance Of Dimenstion:
+- 2%
Wind Speed:
160km/h, 30m/s
Product Description
Detailed Specifications & Features
11KV 38KV Hot Dip Galvanized Electric Power Pole

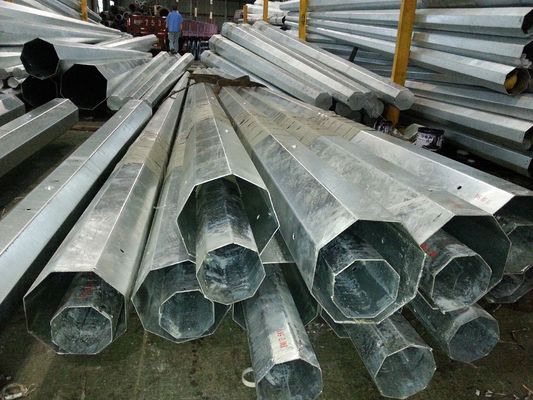

High tensile strength octagonal utility poles with flaw testing and ISO 9001 certification.
Product Specifications
| Minimum yield strength | 355 mpa |
|---|---|
| Minimum ultimate tensile strength | 490 mpa |
| Max ultimate tensile strength | 620 mpa |
| Standard | ISO 9001 |
| Length per section | Within 14m once forming without slip joint |
| Welding | Passed flaw testing. Internal and external double welding meets AWS (American Welding Society) D 1.1 standard |
Production Process
Our advanced production line includes bending calibration machines, hydraulic plate shears, slitting machines, 208T hydraulic straighteners, and other specialized equipment to ensure high-quality steel poles.
The fabrication process includes:
- Plate cutting and bending
- Forming and automatic welding
- Drill holes and pre-galvanizing quality checks
- Hot dip galvanizing and powder coating
- Final quality inspection according to client requirements
Key Features
- Custom designs available for various pole types (lighting, electric, traffic, flag poles)
- Materials: Q235-Q460 hot rolled coil, ASTM573 GR65/GR50, SS400/SS490, ST52-3
- Hot dip galvanized per ASTM A123 or client specifications
- Single section lengths up to 16 meters
- Thickness range: 1mm to 22mm
- Multiple shapes: polygonal (6-16 sides) or round tapered
- Easy installation and maintenance
Our Services
- 24-hour response to inquiries
- English-speaking technical support
- Custom designs (UEM&UBM welcome)
- Engineer-developed solutions
- Distributor discounts and sales protection
- 11+ years manufacturing experience
- Sample availability for large orders
- Quality materials and production processes
