Hot Dip Galvanized Octagonal Steel Utility Poles for Electric Power with ISO9001 Certification and 50 Years Lifetime

1 pcs
MOQ
Negotiation
Price
Hot Dip Galvanized Octagonal Steel Utility Poles for Electric Power with ISO9001 Certification and 50 Years Lifetime
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Galvanized Steel Power Pole
Application: Power Line
Thickness: 1 Mm To 36mm
Tolerance Of The Dimension: +-2%
Life Time: 50 Years
Welding Standard: AWS (American Welding Society ) D 1.1
Material: Q345
Highlight:

ISO9001 Certified Galvanized Steel Pole

,

50 Years Lifetime Steel Utility Pole

,

1mm to 36mm Thickness Electric Power Pole
Basic Infomation
Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/
Model Number: Galvanized Steel Power Pole
Payment & Shipping Terms
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T,L/C at sight
Supply Ability: 300pcs per day
Product Description
Hot Dip Galvanized Octagonal Steel Utility Poles for Electric Power
High-quality ISO9001 certified hot dip galvanized steel utility poles designed for electricity distribution networks. These poles combine durability with excellent corrosion resistance for long-term outdoor performance.
Product Specifications
Feature Specification
Application Electricity distribution
Shape Conoid, Multi-pyramidal, Columniform, Polygonal or Conical
Material Q345B/A572 (minimum yield strength ≥345N/mm²)
Q235B/A36 (minimum yield strength ≥235N/mm²)
Also available: Q460, ASTM573 GR65, GR50, SS400, SS490, ST52
Dimension Tolerance ±2%
Power Capacity 10KV ~550KV
Safety Factors Conducting wire: 8
Grounding wire: 8
Design Load 300~1000kg applied 50cm from pole top
Surface Treatment Hot dip galvanized (ASTM A123), color polyester powder, or custom requirements
Joint Types Insert mode, inner flange mode, face to face joint mode
Seismic Rating Designed against 8 grade earthquakes
Wind Resistance 160 km/h (30 m/s)
Material Strength Minimum yield: 355 MPa
Minimum tensile: 490 MPa
Maximum tensile: 620 MPa
Standard ISO 9001
Section Length Up to 14m without slip joint
Welding Double welding (internal/external) to AWS D1.1 standard, passed flaw testing
Thickness Range 1mm to 30mm
Material Quality Assurance
All materials are sourced from reputable mills with full certification. Each shipment includes mill certificates with stamps and signatures. Materials undergo rigorous chemical and physical analysis before production to verify strength and composition meet specifications.
Galvanization Standards
Standard: NFA91121
Average thickness: ≥86μm
Hot Dip Galvanized Octagonal Steel Utility Poles for Electric Power with ISO9001 Certification and 50 Years Lifetime 0
Production Process
Raw material test → Cutting → Bending → Longitudinal welding → Dimension verification → Flange welding → Hole drilling → Sample assembly → Surface cleaning → Galvanization/powder coating → Recalibration → Packaging
Packaging & Shipping

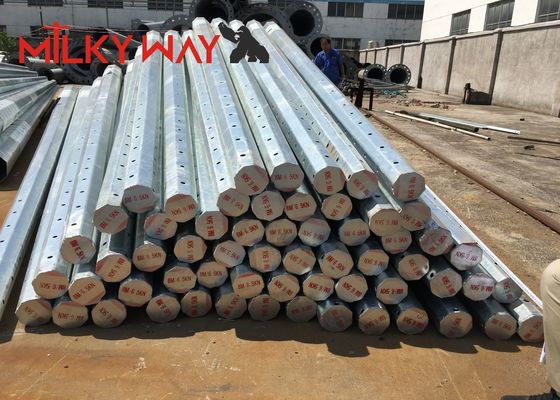

Standard protection with mat or straw bale at top and bottom. Custom packaging available. Loading capacity per 40HC/OT container calculated based on actual specifications.
Hot Dip Galvanized Octagonal Steel Utility Poles for Electric Power with ISO9001 Certification and 50 Years Lifetime 1
Manufacturer Profile
Jiangsu Milky Way Steel Poles, established in 1991 and located in Wuxi, China near Shanghai Port, specializes in manufacturing various steel poles including transmission power poles, street light poles, and high mast poles.
With over 30 years of experience, we've exported to more than 70 countries worldwide, including the USA, Australia, Russia, Germany, and across Africa. Our products have been used in major international projects such as Dubai Tower and the Sochi Winter Olympics.
Hot Dip Galvanized Octagonal Steel Utility Poles for Electric Power with ISO9001 Certification and 50 Years Lifetime 2
