Customizable Steel Power Pole with Gr65 Material and 460 MPa Yield Strength for Electric Distribution

1 pcs
MOQ
Negotiation
Price
Customizable Steel Power Pole with Gr65 Material and 460 MPa Yield Strength for Electric Distribution
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Steel Power Pole
Application: Power Distribution
Material: Gr65
Minimum Yield Strength: 460 Mpa
Max Ultimate Tensile Strength: 620 Mpa
Wall Thickness: 1mm-36mm
Highlight:

Gr65 Material Steel Power Pole

,

460 MPa Yield Strength Electric Distribution Pole

,

620 MPa Tensile Strength Galvanized Steel Pole
Basic Infomation
Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/
Model Number: Steel Power Pole
Payment & Shipping Terms
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T,L/C at sight
Supply Ability: 300pcs per day
Product Description
Customizable Steel Power Pole for Electric Distribution

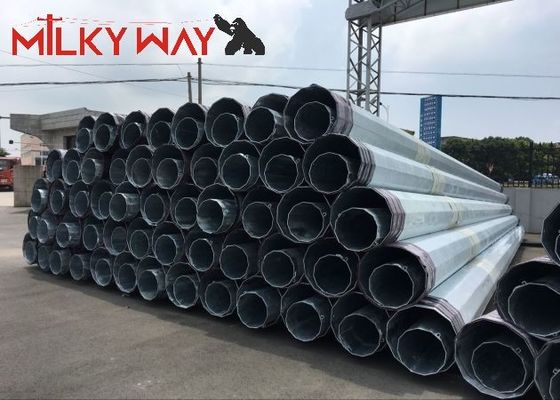

Hot dip galvanized steel power distribution poles available in lengths from 35FT to 70FT (10.7m to 21.35m).
Product Specifications
Types Length 45ft (13.75m) 50ft (15.25m) 55ft (16.80m) 60ft (18.30m) 65ft (19.85m) 70ft (21.35m)
B (0°-2°)
Top diameter (mm) 200 200 200 200 200 200
Butt diameter (mm) 345 370 395 415 435 455
Thickness (mm) 6 6 6 6 6 6
Material Description
  • Poles are manufactured by high-quality metal plants, molded into multi-row cone-shaped vertical steel bars with hot galvanized anti-corrosion treatment
  • Light plate frame is constructed from high-quality stainless steel
  • Fastened with stainless steel bolts and nuts
Customizable Steel Power Pole with Gr65 Material and 460 MPa Yield Strength for Electric Distribution 0
Our Services
Responsive Communication
Reply to your inquiry within 24 working hours with experienced staff answering all questions in fluent English.
Custom Solutions
Customized designs available (UEM&UBM welcome). Our professional engineers provide exclusive solutions.
Distributor Benefits
Special discounts and sales protection provided to our distributors.
Quality Assurance
20+ years manufacturing experience using superior materials and advanced technology for high-quality, stable products.
Sample Policy
Samples available within one week for large orders (shipping charges typically paid by customer and rebated with formal order).
Customizable Steel Power Pole with Gr65 Material and 460 MPa Yield Strength for Electric Distribution 1
Company Profile
Jiangsu Milky Way Steel Poles, established in 1991 and located in Wuxi near Shanghai Port, has 24 years experience producing various steel poles including transmission power poles, street light poles, and high mast poles.
Our products have been exported to over 70 countries including USA, Australia, Russia, Germany, Spain, Philippines, Malaysia, and Africa. We've supplied major projects worldwide including street light poles for Dubai Tower and high mast poles for the Sochi Winter Olympics.
Customizable Steel Power Pole with Gr65 Material and 460 MPa Yield Strength for Electric Distribution 2
