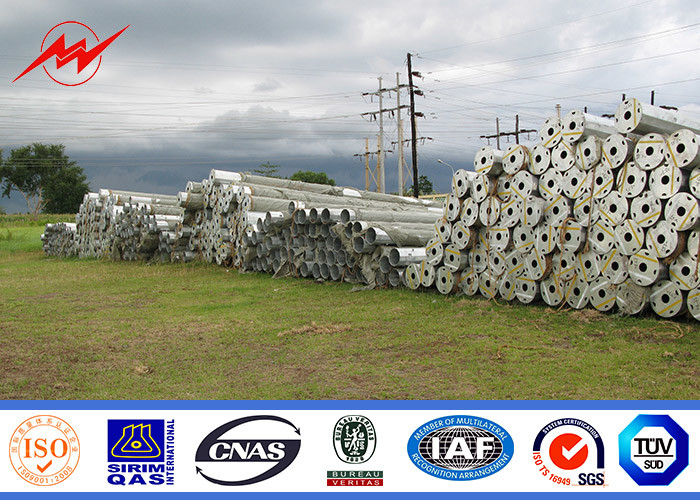

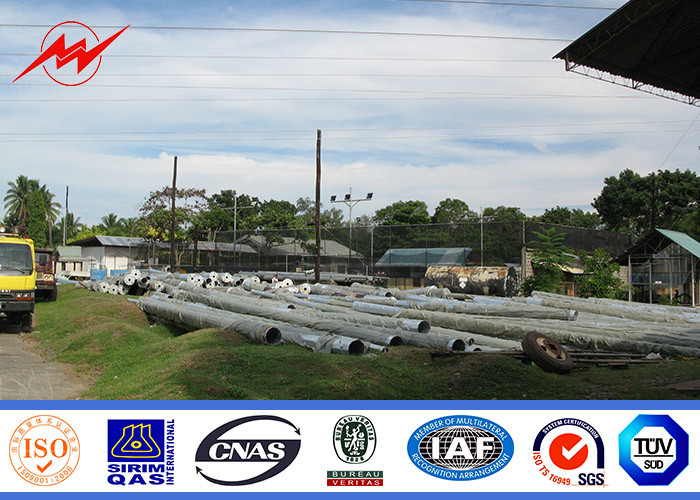

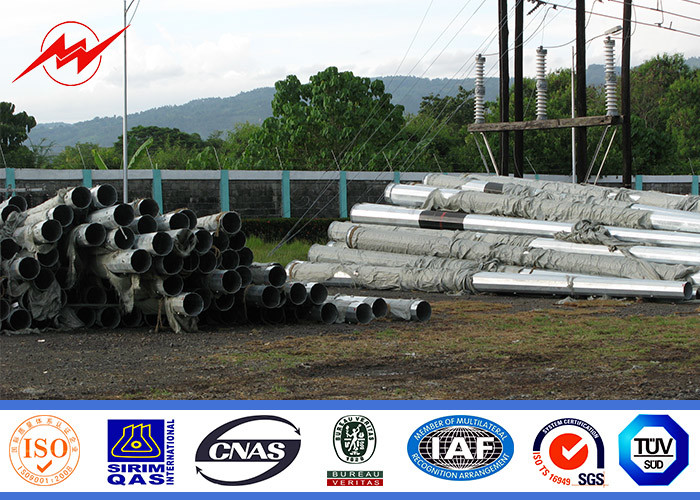

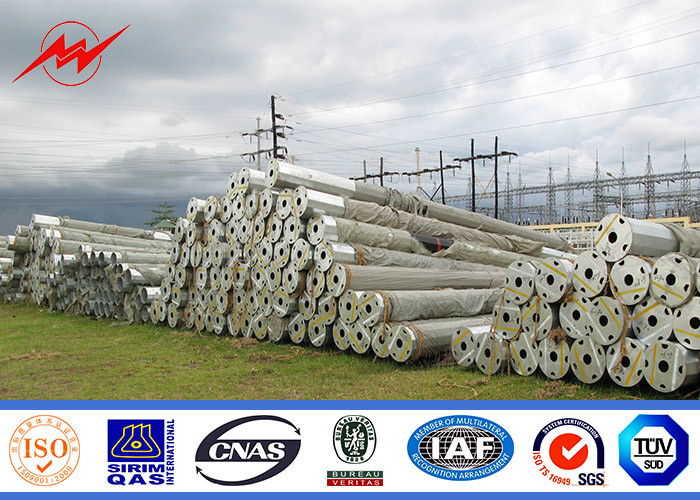

8m 5KN Q345 Electric Steel Transmission Poles Galvanization 30m / S Wind Speed
electrical power poles
,electrical transmission poles
8m 5KN utility pole high quality Q345 electric pole Africa bid
|
Material: |
Hot rolled steel, Q235,Q345,S235, or customized |
|
Pole’s height |
8m |
|
length |
Within 16m once forming without slip joint |
|
Wall thickness |
2.5mm-20mm or optional |
|
Pole's Shape: |
Round, Polygonal, Octagonal, Conial |
|
Arm type: |
Single arm, Double arm, or as per cliens' request |
|
Application: |
road,avenue, street, expressway, park, square |
|
Production Process |
Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-packages |
|
Max wind velocity |
Aganist wind pressure of 160Km/h |
|
Base plate mounted |
Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement. |
|
Ground mounted |
The length buried underground as per customer’s requirement. |
Electric Power Tower includes angle steel tower, tapered tubular steel, transformer substation framework, power plant framework and so on.
A utility pole is a column or post used to support overhead power lines and various other public utilities, such as electrical cable, fiber optic cable, and related equipment such as transformers and street lights. It can be referred to as a transmission pole, telephone pole, telecommunication pole, power pole, hydro pole, telegraph pole, or telegraph post, depending on its application.
Electric power tower is the steel structure frame of bracing electrical wires, keeping a sage distance of guild wires and buildings on the ground. According to appearance, the power tower can be divided to glass type tower, cat head type tower, Shang type tower, Gan type tower and doliform tower. On the basis of application, power tower can be separated to tension type tower, linear type tower, angle type tower, transposition type tower, terminal type power tower and crossing type power tower.
The tower is mainly consists of angle steel, connecting steel plate and bolt, some is component part of steel plate welding, as column foot. The simple tower part making the hot zincification anticorrosion, transportation, construction and erection is much easy. Usually use shackles on main pole of tower which the height is less than 60 meters for convenience of workers to ascend.
Steel tube tower mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.
