50 Meters 16 Sides High Mast Lighting Lowering Device With Auto Hoisting System

50 meters 16 Sides high mast light pole With Aotumatic Hoisting System

 Specifications:
 1.Height: 50m
 2.Max length per section: 14 m
 3.Thickness: 2.5mm ~ 30 mm
 4.Shape: Conical or polygongal tapered
 5.Material: Q235B/A283 M Gr.C / SS400/S235 JR / St 37-2 / Fe 360
 Q345B/A572 M Gr. 50/S355 JR / ST 52-3/Fe 510
 6.Lamp Power: 250W ~ 2000W (HPSL / MH)
 7.Lifting system:Lifter fixed in the inner of the pole with lifting speed of 3 ~ 5 meter per minute
 Euqiped with ectromagnetism brake and break-proof device, manual opeation applied under power cut.
 8.Head frame: Our headframe can be designed as per customer requirment to carry camera or industrial  antenna.
 9.Finish: hot dipgalvanization, blasting, powder coating, painting.
 10.Galvanization standard: ASTMA 123 / EN ISO 1461
 11.Welding: AWS D 1.1 / BS EN 1011-1, BS EN 1011-2
 Design: We have our standard pole with our design, OEM and ODM is also accpetable
 Packages: Standard seaworthy
 Delivery time: with two weeks after confirm the order.

 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 70μm.

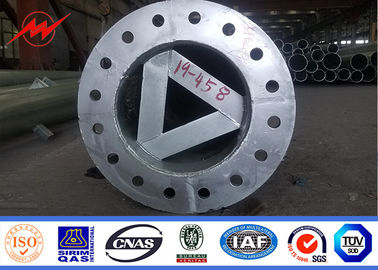

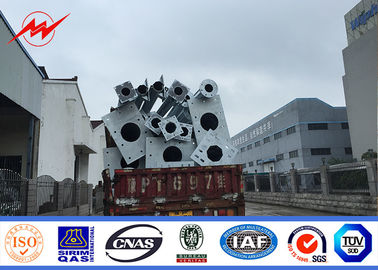

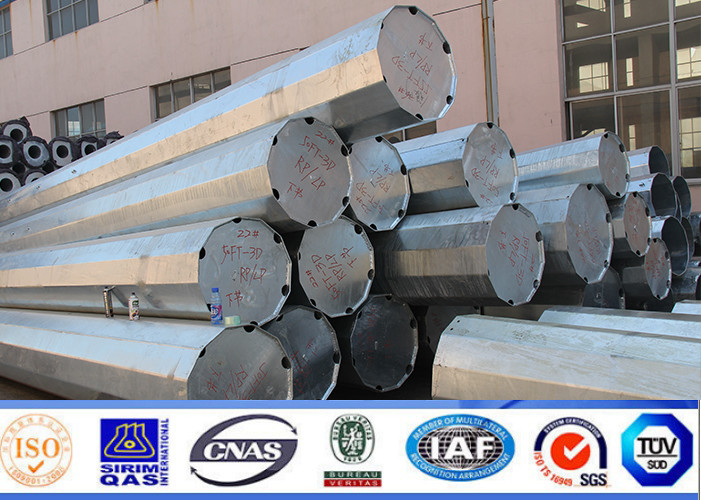

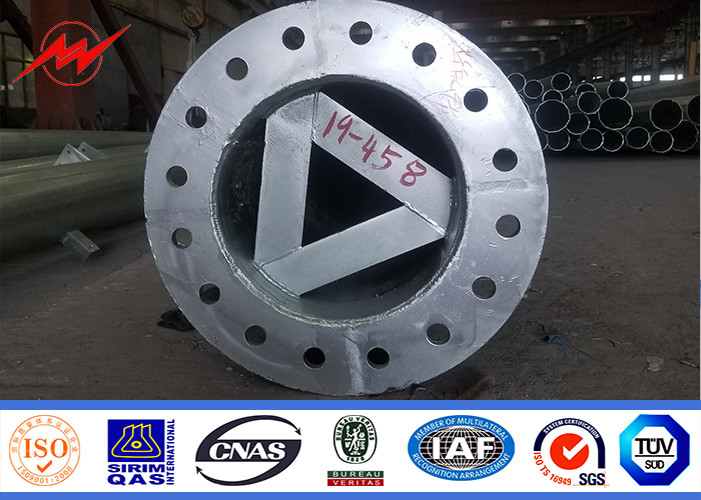

 More Photos:

Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
