10kv~550kv Electrical Power Pole 30m/s With Hot Dip Galvanization Transmission Line

one 40 HQ
MOQ
negotiation
Price
10kv~550kv Electrical Power Pole 30m/s With Hot Dip Galvanization Transmission Line
Features Gallery Product Description Request A Quote
Features
Specifications
Power: 10kv~550kv
Type: Straight Pole, Tensile Pole, Turn Pole
Thickness: 1mm To 30mm
Wind Speed: 160km/h, 30m/s
Tolerance: +/-2%
Design Load In Kg: 300~ 1000 Kg Applicated To 50cm From The To Pole
Highlight:

Hot Dip Galvanization Transmission Line Poles

,

550kv Electrical Power Pole

,

30m/S Power Transmission Poles
Basic Infomation
Place of Origin: China
Brand Name: Milky Way
Certification: /BV/ISO
Model Number: Power Pole Plectrical With Hot Dip Galvanization Transmission Line Poles
Payment & Shipping Terms
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
Product Description

Power Pole Plectrical With Hot Dip Galvanization Transmission Line Poles







Specification



Material:

 Q345, Gr65, S500

Mounting Height:

 According to the requirements of customers

Shape of pole:

Round,conical,octagonal,square,mid hinged,polygonal shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine



Brackets:

Single or double brackets are in the shape and dimension as per customers requirement

Base plate:

Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement



Groung mounted:

The length buried underground as per customers requirement



Galvanizing:



Hot dip galvanization with thickness of 80-100µm average



Powder coating:

Pure polyester powder painting, color is optional

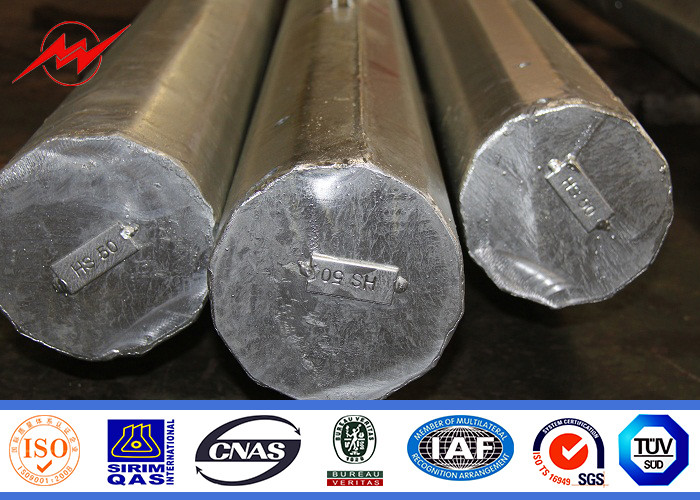

10kv~550kv Electrical Power Pole 30m/s With Hot Dip Galvanization Transmission Line 0

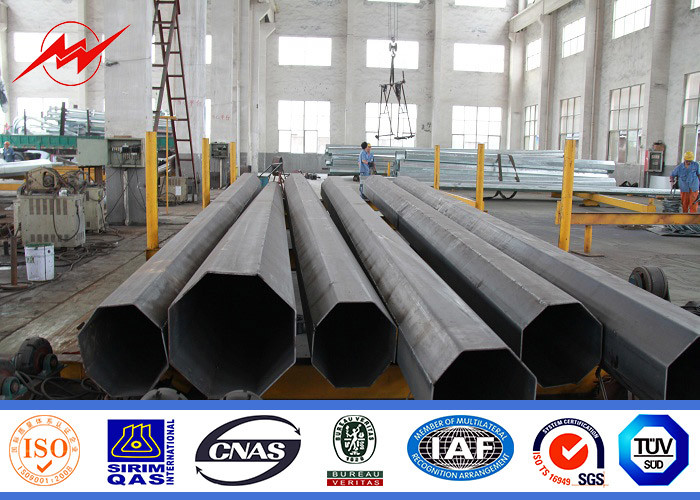

Production Process



Our factory own advance production line, machine including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All the purpose is to produce good quality steel poles.



The fabrication process as cut plate, bending, forming, automatic welding, drill holes, quality check before galvanized, hot dip galvanized and powder coating, finally quality check according by client’s required.

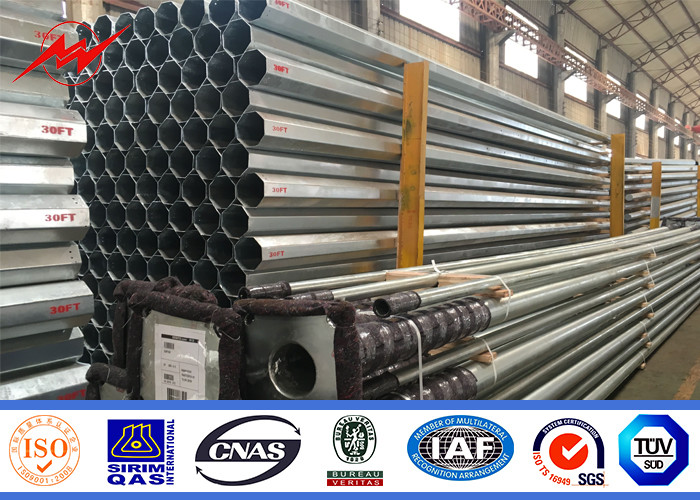

10kv~550kv Electrical Power Pole 30m/s With Hot Dip Galvanization Transmission Line 1





Tag:

power distribution poles

steel power poles

galvanized light pole
