Conical 138kv Power Tower Transmission Pole 30m / 60m

1 pcs
MOQ
Negotiation
Price
Conical 138kv Power Tower Transmission Pole 30m / 60m
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Galvanized Steel Poles 12m Utility Power Poles For Power Distribution Equipment
Shape: Round,Conical
Payment Terms: T/T,L/C
Thickness: 2.5mm-16mm
Surface Finished: Hot Dip Galvanized
Standard: /BV/ISO9001
Highlight:

Conical Tower Transmission Pole

,

Conical 138kv Power Transmission Pole

,

60m Conical Power Tower Pole

Basic Infomation
Place of Origin: Jiangsu,China
Brand Name: Milky Way
Certification: /BV/ISO9001
Model Number: Steel Utility Pole
Payment & Shipping Terms
Packaging Details: As customers' request
Delivery Time: 10-30 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 30,000 Tons per month
Product Description

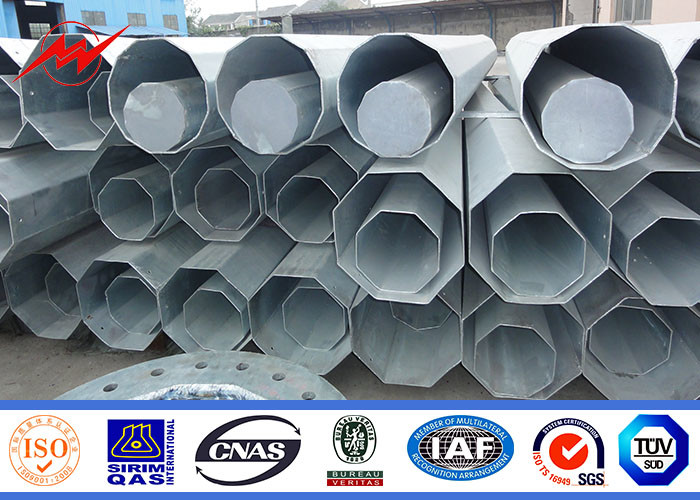

30m / 60m Conical 138kv Power Transmission Tower Power Transmission Pole





Features:



 Pole’s height

All available

Type

Straight Pole ,Tensile Pole ,Turn Pole,etc

Shape of pole

Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc

Crossarm

 Single or double crossarm, dimension as per customers’ requirement

Material

Steel materials conform to ASTM A36,

Q235 equivalent to SS400, S235JO. Q345 equivalent to S355JR,Grade 50

Q460 equivalent to S460, Grade 65

 Wall thickness

≥2.5mm

Once forming

13m without joint



Welding

Welding complies with CSA and AWS, AWS D1.1 standard.

The welders have got corresponding certificate after testing and inspection.

 Joint

 Joint with insert mode, flange mode.

Base plate mounted

Base plate is square or round with slotted holes for anchor bolt and dimension as per client’s requirement.





Packing & shipping





We use sack package the poles or straw at the pole top and bottom which is our normal package. We also use wood between the poles but cost just little higher than normal package. We normally use 40HQ container and our Port limit weight for 40HQ is 26Ton.





Conical 138kv Power Tower Transmission Pole 30m / 60m 0





Our Servises:





1.Reply your inquiry in 24 working hours.



2. Experienced staffs answer all your questions in fluent English.



3. Customized design is available. UEM&UBM are welcomed.



4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.



5. Special discount and protection of sales are provided to our distributor.



6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity.



 7 Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.



8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
