Product Details:
Payment & Shipping Terms:
|
| Material: | Q235 Q345 GR65 SS400 | Wind Speed: | 35m/s |
|---|---|---|---|
| Origin Of Place: | Yixing | Type: | Burial |
| Surface Treament: | Hot Dip Galvanization | Galvanization Standard: | ASTM A123 |
| Welding: | AWS D1.1 | Warrenty: | 30 Years |
| Lifetime: | 50 Years | ||

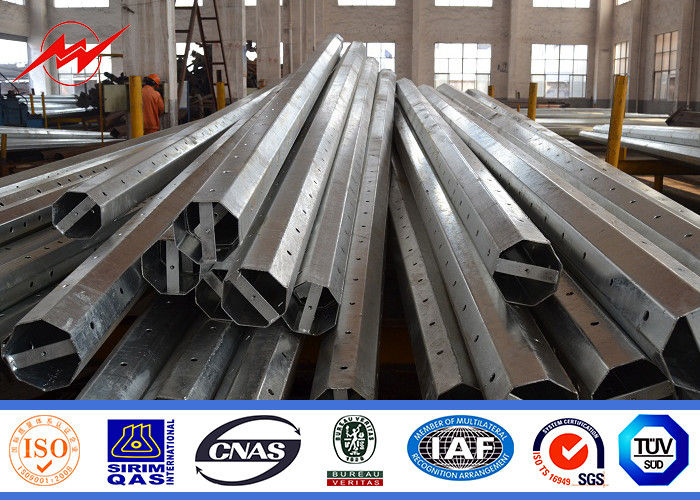

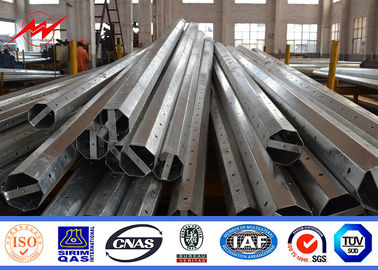

| High Light: | 4.5m utility power poles,polygonal utility power poles,7.5m steel utility pole |
||
Inspection
To assure our products qualified ,we take steps as follows :
1. Management team : We have employ the foreign export to take chaege of the overall managemnt ,especailly the technical managemnt and quality management .
2.Introducing ISO management ,We are awared ISO 9001:2008 certificate . .
3.QC Inpection:It is our company policy that all the finish product should be inspected by our specialzed QC in every manufacure steps and beofore every shipment
Specification
| Minimum yield strength | 355 mpa |
| Minimum ultimate tensile strength | 490 mpa |
| Max ultimate tensile strength | 620 mpa |
| Standard | ISO 9001 |
| Length of per section | Within 14m once forming without slip joint |
| Welding |
We has past flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
|
Features:
1.We can supply the product base on client required drawing ,but also can supply the design for any kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.
2.Matercial :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3
3.deal: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.
4.Packing: Plastic bulble , Mat &Straw Bale or following client required
5.Length : within 16meters once forming( single section)
6.Thickness: from 1mm to 22mm
7.Shape: polygonal(6-side,8side,12-side,16side) round tapered.
8.Easy install and maintenance.
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 11 years, competitive with good quantity.
7. Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company
