Product Details:
Payment & Shipping Terms:
|
Product Name: | Steel Utility Pole | Application: | Electricity Transmission |
---|---|---|---|
Galvanization Thickness: | Average 86μm | Standard: | ISO |
Lift Time: | 50 Years | Gavanization Standard: | ASTM A 123 |
Dimenstion Torlance: | +- 2% | ||
Highlight: | metal utility poles,electric telescoping pole |

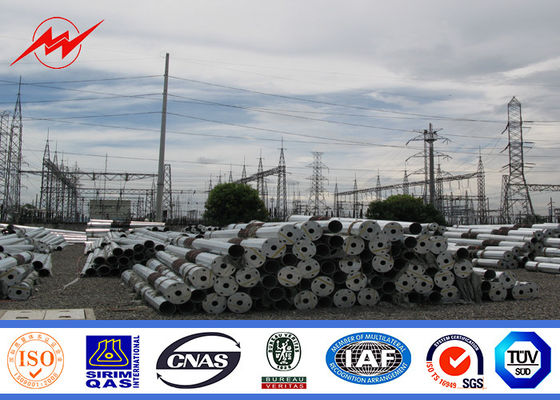

Polygonal 11.8M 12KN Steel Utility Pole for Electrical Power Transmission
Specifications:
Type |
Straight Pole, Tensile Pole, Turn Pole |
Max length per section |
14 m |
Thickness |
2.5mm~30 mm |
Shape |
Conical or polygongal tapered |
Material |
Q235B/A36/A283 M Gr.C /SS400/S235 JR/St 37-2 /Fe 360 |
Power |
10 KV ~ 550 KV |
Electroshock resistant protective grade |
Grade Ⅰ |
Finish |
hot dipgalvanization ,blasting,powder coating ,painting |
Galvanization standard |
ASTMA 123 / EN ISO 1461 |
Welding |
AWS D 1.1 /BS EN 1011-1,BS EN 1011-2 |
Production Process | Rew material test → Cuttingj →Molding or bending → Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
Packages | Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data. |
Torlance of the dimenstion | +- 2% |
Design of pole | Against earthquake of 8 grade |
Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.
Installation
-Remove all the equipment on the pole during Assembly.
-Circle a sling around th epole shaft of each section.
-Fix the sling on top section to one pulley block.
-The sling on the bottom section is tightly fixed and fixed at the center of gravity.
-Make the steel pole vertical by tighten the sling of the top section.
-Fix the steel pole.
-Remove the sling.
Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
