12m Galvanized Steel Tubular Pole For Distribution Line 1250Dan 800Dan 660Dan 410Dan

Certification
China Jiangsu milky way steel poles co.,ltd certification
China Jiangsu milky way steel poles co.,ltd certification
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

I'm Online Chat Now

12m Galvanized Steel Tubular Pole For Distribution Line 1250Dan 800Dan 660Dan 410Dan

China 12m Galvanized Steel Tubular Pole For Distribution Line 1250Dan 800Dan 660Dan 410Dan supplier
12m Galvanized Steel Tubular Pole For Distribution Line 1250Dan 800Dan 660Dan 410Dan supplier 12m Galvanized Steel Tubular Pole For Distribution Line 1250Dan 800Dan 660Dan 410Dan supplier 12m Galvanized Steel Tubular Pole For Distribution Line 1250Dan 800Dan 660Dan 410Dan supplier 12m Galvanized Steel Tubular Pole For Distribution Line 1250Dan 800Dan 660Dan 410Dan supplier

Large Image :  12m Galvanized Steel Tubular Pole For Distribution Line 1250Dan 800Dan 660Dan 410Dan

Product Details:

Place of Origin: JIANGSU,CHINA
Brand Name: milky way
Certification: ISO9001:2015
Model Number: 12m

Payment & Shipping Terms:

Minimum Order Quantity: ONE CONTAINER
Price: USD 130-180POLE
Packaging Details: The normal package is container(Size: L*W*H). Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole , anyway also can following by client required , The lo
Delivery Time: ALWAYS 20DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000POLES/MOUTH
Detailed Product Description
MATERIAL: S355JR APPLICATION: ELECTRICITY DISTRIBUTION
THICKNESS: 2.5-10MM SHAPE: POLYGON
GALVANIZATION: ASTM A123,average Coationg Not Less Than 85um WELDING: AWS D1.1,penetration 100%
LIFETIME: 50 YEARS WIND SPEED: 160KM/H
ULTIMATE TENSILE STRENGTH: 490-620MPA
Highlight:

12m Galvanized Steel Tubular Pole

,

Galvanized Tubular Pole For Distribution Line

,

1250 Dan Galvanized Tubular Steel Pole

Description

1.Top diameter:140mm

2.Bottom diameter:not less than 300mm

3.Thickness:3mm/4mm

4.Material:Low alloy steel,yield strength not less than 345mpa(GB/T1591-2008standard)

C≤0.20,Mn≤1.70,Si≤0.50,P≤0.50,S≤0.0345

5.Marks:Nane plate through rivert or glue ,engrave ,emboss as per customer requirement

6.Welding :We has past flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Penetration :100%

12m 800 Dan 1600 Dan Direct Burial Hot Dip Galvanized Pole Monopole Long Life 0





Specification

12m 800 Dan 1600 Dan Direct Burial Hot Dip Galvanized Pole Monopole Long Life 1 12m 800 Dan 1600 Dan Direct Burial Hot Dip Galvanized Pole Monopole Long Life 2

length:11.9m length:12m
design:one section desigh:two sections
top dia:140mm top diameter:140mm
bottom diameter:315mm bottom diameter:345mm
thickness:3mm thickness:4mm





Advantage

Excellent performance:

Because of the long and thin shape,closed polygonal section and apply of high strength steel material,these steel poles have excellent durability.they can withstand the extreme condition,such as the frost climate,unbalanced loads, or breaking of wire.



Installation

The designing weight of the steel poles are usually relatively light ,and is good for the operation,transportation,assemble and installation.



Environment

Since the long and thin straight line shape.the steel pole from Milkyway Steel Poles are easily intergrated into the landscape.At the protected areas(mountains),the installation of steel pole will not influence the aesthetic solution of the scenic spot.



Maintenance

The hot dip galvanization trearment can increase the service life of the steel polewithout the environmental pollution and no need for other daily maintance.The following described types are specially designed for Africa Market which can meet the regulated height and load standard of France electricity power company.



Production

our steel pole is bend to form to the polygonal(conical) section firstly.Then it is welded by the automatic submerged-arc welding machine.Thirdly the top cap,strip and base plate will be welded to the pole.And finally other accessories (support brackets ,ladder support,etc.)will be welded to the pole shaft.



Galvanization

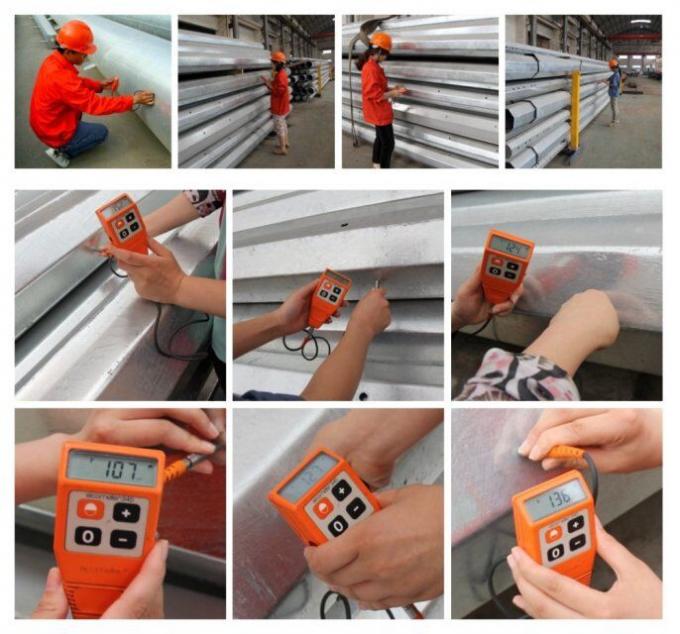

The galvanization of the steel pole are under strict control.galvanization is achieved by immersion in a molten zinc bath(450°) after pre-treated(dipping)

12m 800 Dan 1600 Dan Direct Burial Hot Dip Galvanized Pole Monopole Long Life 3

FAQ



Q1. How can I get a price of needed pole?

A: 1. Please give the exactly dimensions such as height, thickness, material, top and bottom dia. We can according to your specification give you a similar price.

2. You can send us a drawing; we can according to your drawing give you one price.

Q2. I am a small wholesaler, do you accept small order?
A: It's no problem if you are a small wholesaler; we would like to grow up with you together.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help customers to be successful. So it's welcome if we can help you solve problem and make your design come true.
Q4. We want be your agent of our area. How to apply for this?
A: Please send your idea and your profile to delia @yin-he.com
Q5. Tell me about your company?

A:Jiangsu Milky Way Steel Poles Co.,Ltd , we have been a manufacturer and exporter of all kinds of steel poles, including street lighting pole,

power transmission pole, floodlighting pole for large squares and other steel products since 1991.Our poles have been exported to more than 70 countries and areas.

Q6. Do you have some special policies for Brand company?

A:Yes, we have some special support for the company who has own brand but also in our VIP customers list. Please send us your selling

data of last year. So we can see how to support you for your products in your market.

Q7. Can you make Door to Door service? Because i don't know how to do customs clearance.

A:Yes. We can make Door to Door service to help you save much time of shipping. Also we have big discount with shipping company because

we have do much of this every day. So it will save your time also money.

50ft Galvanized Octagonal Outdoor Monopole Cell Tower Communication Distribution With Minimium Galvanization 100
