Product Details:
Payment & Shipping Terms:
|
| Style: | Galvanization | Surface Treatment: | Hot Dip Galvanized |
|---|---|---|---|
| Design Load In Kg: | 300~ 1000 Kg Appliced To 50cm From The To Pole | Power: | 10 KV ~550 KV |
| Torelance Of Dimenstion: | +- 2% | Wind Speed: | 160km/h, 30m/s |
| High Light: | High Performance Utility Power Poles,Residential Subdivisions Utility Power Poles,Commercial Areas Utility Power Poles |
||

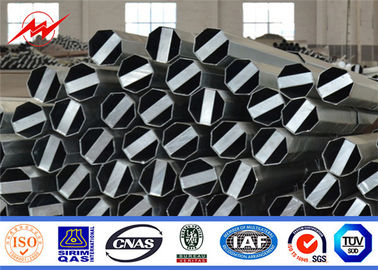

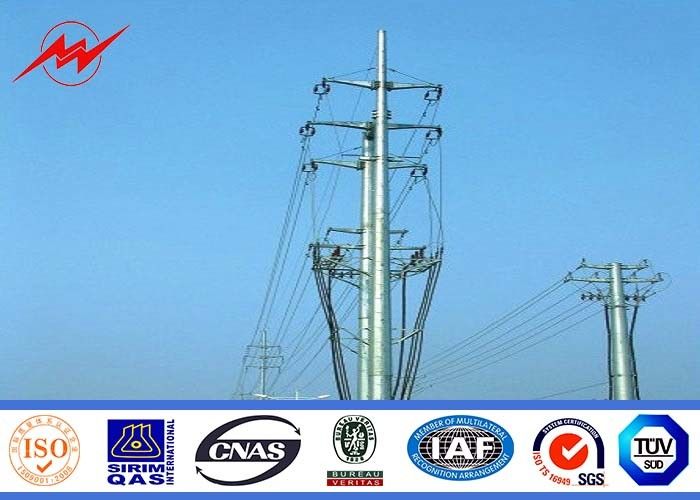

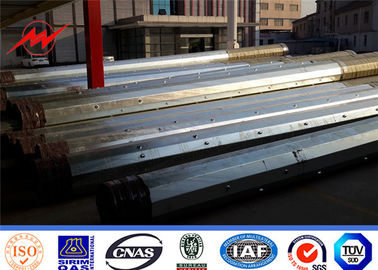

10 M 500dan Galvanized Steel Utility Pole 110kv Metal Light Pole
Specification
|
Technical parameters |
1. Height(M):9m |
|
2. Hot dip galvanized, color polyester power or any other standard by client required. |
|
|
3. Welding reached national standards |
|
|
4. Form without slip joint. |
|
|
5. Steel, Q235, conical ,octagonal or polygonal. |
|
|
6. Type: conical, octagonal, or polygonal ,mid-hinged ,taped and other shapes |
|
|
7. Thickness:2-4mm |
|
|
8. Arm: single arm, double arms ,three arms or four arms |
|
|
9. Application: street ,road ,highway, park ,factory ,school Roadway Residential subdivisions Commercial development and so on |
|
|
Production Process |
Raw material test → Cutting →Molding or bending →Welding(longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
|
Customer choice |
1. Height from 6m to 12m |
|
2. Flange mounted or planted type |
|
|
3. Variable arm length with single or double arm type |
|
|
4. Variable spigot size |
|
|
5. Designed for various kinds of application |
|
|
Package |
1. Plastic foam and nylon bag,or upon your request |
|
Delivery |
1. 30days after receiving the deposit |
Key Process

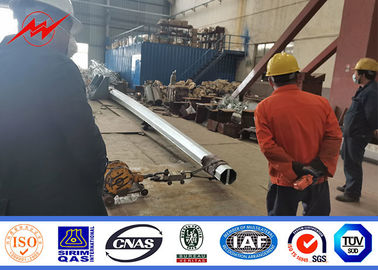

The fabrication process as cutting plate, bending/forming, automatic welding, drill holes, quality check before galvanized, hot dip galvanized , recalibration, inspect according to client’s required then delivery on time as Constract.
(1)Material Preparation→(2)Bending→(3)Welding→(4)Repair and Grinding→(5)Reforming→(6)Flushing→(7)Fix bottom plate→(8)Welding bottom plate→(9)Opening door→(10)Welding door strip, electric strip, and locking→(11)Bending arm→(12)Hot dip galvanization→(13)Plastic powder painted→(14)Inspection→(15)Shipment
Applied to the material of general-purpose steel GB/T1591-2008, ASTM A36, ASTM A572.
Q235 used in China , which equivalent to SS400, ASTM A36.
Q345 used in China, which equivalent to S355JR. Gr 50. Min Yield Stress 345 Mpa.
Q460 used in China , which Gr65.
1. Factory direct sale.
2. Industry and trade integration business.
3. 15 years experience.
4. Various designs.
5. ODM, OEM acceptable.
6. Flexible payment.
7. Fast, accurate quotes.
8. Our good service.
9. Technical support by e-mail.
10. Calling service.
11. Provide maintenance instruction video.
