25FT 40FT Transimission Power Octagonal Galvanized Steel Pole For Power Transmission

1 pcs
MOQ
Negotiation
Price
25FT 40FT Transimission Power Octagonal Galvanized Steel Pole For Power Transmission
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Electric Power Pole
Application: Power Transmission
Surface Treatment: Hot Dip Galvanization
Welding Standard: AWS D 1.1
Standard: ISO
Galvanization Standard: ASTM A 123
Lift Time: 50 Years
Highlight:

steel power pole

,

transmission line poles
Basic Infomation
Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/
Model Number: Electric Power Pole
Payment & Shipping Terms
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Product Description

25FT 40FT Transimission power octagonal galvanized steel pole



 Description:

 Standard Accessory

 -Top plate

 -Base plate

 -Bottom strip

 -Standard hole

 -Climbing rung

 -Anchor bolt

 -Bitumen protection

 -Painted marking

 -Removable ladder



 Steel
 The material is in accordance with NF EN 10025
 Standard and NF EN 10149 Standard,it has the following property.
 -Yield Strength=355N/mm2
 -Toughness remains the same under 20 degrees below zero.
 -Galvanization is in accordance with NFA35503 Standard Class 1.





 25FT 40FT Transimission Power Octagonal Galvanized Steel Pole For Power Transmission 0



 Specification:





Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required.
Joint of Poles Insert mode,innerflange mode,face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour .  30 m /s
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Max ultimate tensile strength 620 mpa
Standard ISO 9001
Length of per section Within 14m once forming without slip joint
Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness 1 mm to 30 mm
Production Process Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages





 The followed design is based on ASTMA 572 Gr 65 material,with octagonal cross section shape,while the  safety factor is 1.8.If you have other requirement on load,height,material and cross section shape,pls  contact us.





 25FT 40FT Transimission Power Octagonal Galvanized Steel Pole For Power Transmission 1

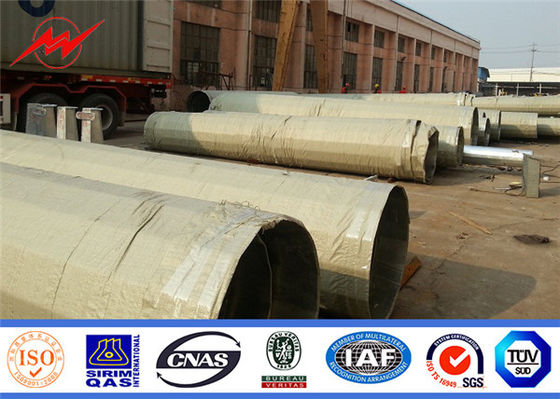

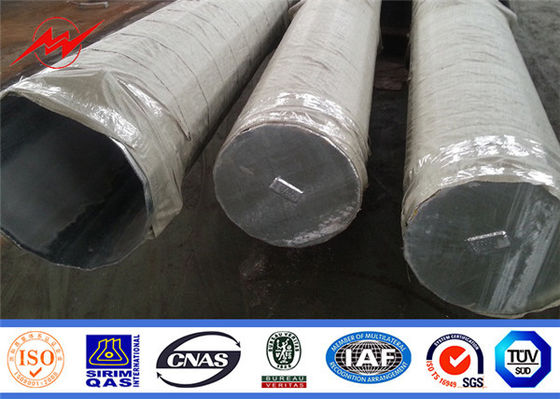

Packages:

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data.



 25FT 40FT Transimission Power Octagonal Galvanized Steel Pole For Power Transmission 2





Tag:

steel power pole

transmission line poles

electric power pole
