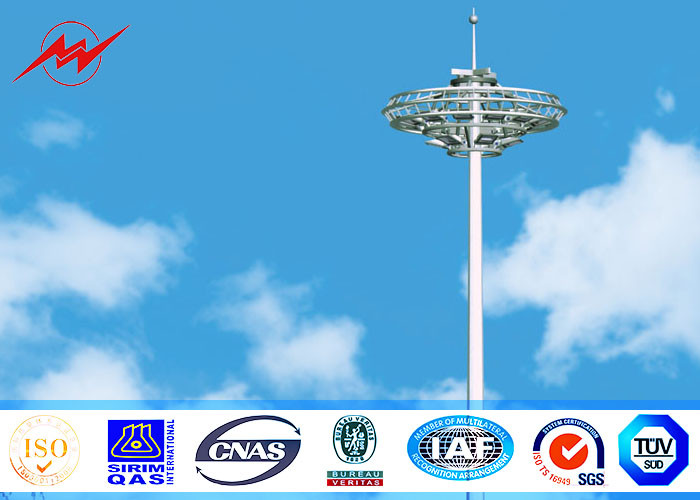

12 sides 40M High Mast Pole Gr50 material with round panel 8 lights

Large Image : 12 sides 40M High Mast Pole Gr50 material with round panel 8 lights

Product Details:

Place of Origin:	Yixing,Jiangsu,China
Brand Name:	Milky Way
Certification:	ISO9001
Model Number:	High Mast Light

Payment & Shipping Terms:

Minimum Order Quantity:	1 Poles
Price:	Negotation
Packaging Details:	Naked Package or naked
Delivery Time:	10-30 working days after received your payment
Payment Terms:	L/C, T/T
Supply Ability:	30,000 Tons per month

Contact Now

Detailed Product Description

Item Name:	12sides High Mast Pole	Pole Shape:	12 Sides
Light Quantity:	8 Lights	Usage:	Stadium Lighting
Surface Finished:	Hot Dip Galvanized	Application:	Street Way,highway,airport,Stadium
High Light:	high mast lighting pole , Park Light pole

12 sides 40M High Mast Pole Gr50 material with round panel 8 lights

THE IN-HOUSE FACILITIES INCLUDE:

Illumination design: Equipped to handle optimum designs for all lighting applications like stadiums, traffic junctions, airports, sea ports, container yards, railway marshaling yards, etc.

Civil / Structural design: Masts confirming to various terrains, wind zones, and heights.

Mechanical design: To design the complete raising and lowering systems.

Options:

• The High Mast is available in various length, diameters and hole arrangements.
• Multisided or Tapered round variations.
• The High Mast is available in base plate mounted or direct bury installed.
• All High Masts are hot dip galvanized according to EN 1461, and can be powder coated or painted.
• Additional service doors.
• Pre-drilling for removable safety steps is available.

Quick Product Description-High Mast Lighting Pole

Item	22 MTR	20 MTR
Material Construction	Q345(Gr50)	Q345(Gr50)
No. of Longitudinal Welds	Single/Double	Single
Cross section of mast in polygon((No. of Sides)	Octagonal,dodecagon,hexadecagon	Octagonal,dodecagon,hexadecagon
Thickness	4mm,6mm,8mm,10mm or customized design	4mm,6mm,8mm,10mm or customized design
Individual Section’s Length	11375mm	10375mm
Base & Top dia (OAF)	450/200mm	450/200mm
Thickness of galvanization(Average)	86 Microns	86 Microns
Size of opening door at base	360 x 1400 mm	360 x 1400 mm
Size of base plate diameter	650 mm	650 mm
Size of base plate thickness	32 mm	32 mm
Number of foundation bolts	12	12
Bolt diameter	28 mm	28 mm

Application

• Fly Overs
• Road Junction
• Parks
• Parking Areas
• Apron Lighting
• Airports/Dockyards
• Coal Handling
• Power Plants
• Container Terminals
• Petrole Pumps
• Any other Outdoor Application

ACCESSORIES

Mast with continuous tapered polygonal cross section have high load bearing strength oscillation due to wind speed and related stress are fully taken care in the design.

IMPORTANT TECHNICAL FEATURES

FIXED TYPE HEAD FRAME :

Designed with larger Dia. Non corrosive aluminum pulley system for longer life and perfect balancing.

WINCHES :

Winch designed with gear ration 53:1 and without break of clutches. These are self lubricated for sustained trouble free life.

Anchor Bolt

12 sides 40M High Mast Pole Gr50 material with round panel 8 lights 0

12 sides 40M High Mast Pole Gr50 material with round panel 8 lights 1

FINISH :

The complete mast with component is fully hot dip galvanized for longer life.

LANTERN CARRIAGE :

We specialize in custom built design, standard lighting design and various types and shapes. The lantern carriage is supported with three numbers flexible 6 sq. mm. S.S. wire ropes from the distributors that can be elevated/lowered electrically and mechanically.

Special Features of High Mast

• 2 Section Mast for 12/16/20 Mt.

• 3 Section Mast for 25/30 Mt.

• 4 Section Mast for 35/40 Mt.

• Wind Velocity upto 200 km/hr

• Galvanised Steel.

• 2/3 Pulley wirerope system

• Motorised & Manually operated Winch for Lantern Carriage

• Flood Light Luminaires with appropriate

CG Box & HID Lamps

• Aviation obstruction Lamp for LED &

GLS application
