Product Details:
Payment & Shipping Terms:
|
| Item Name: | Galvanized 30M High Mast Pole | Type: | Rasing System Or Ladder Type |
|---|---|---|---|
| Height: | 30M | Light Arrangement: | Round Type Or Suqare Type |
| Surface Finished: | Hot Dip Galvanized | Application: | Street Way,highway,airport,Stadium |
| High Light: | high mast lighting pole,Sports Light Poles |
||

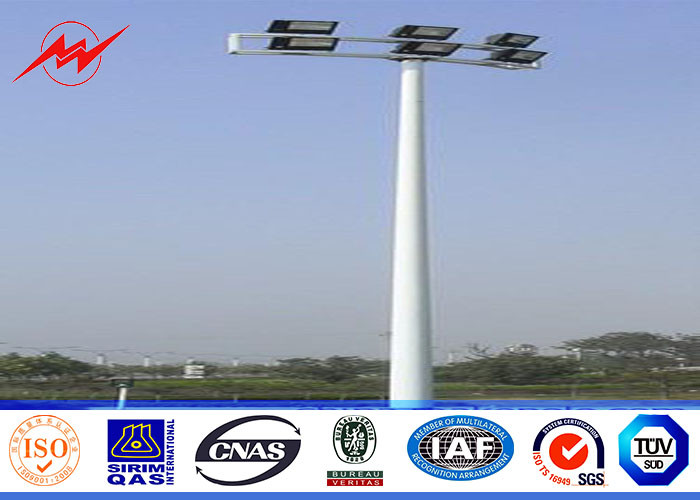

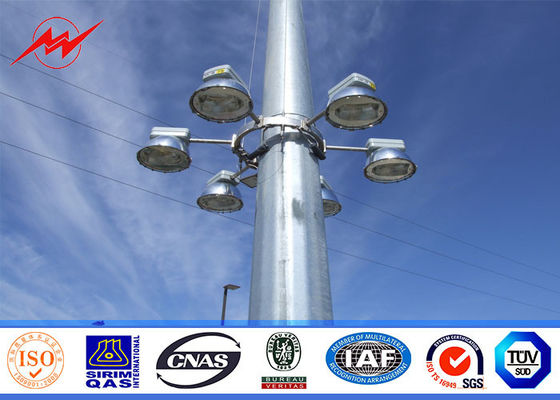

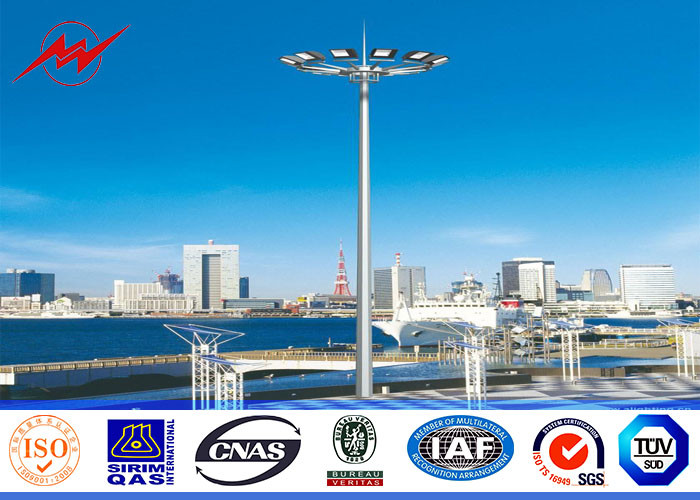

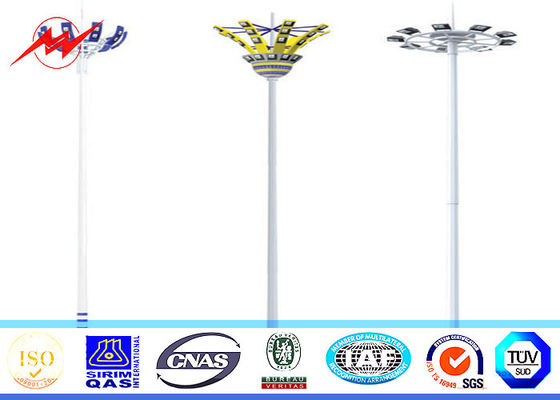

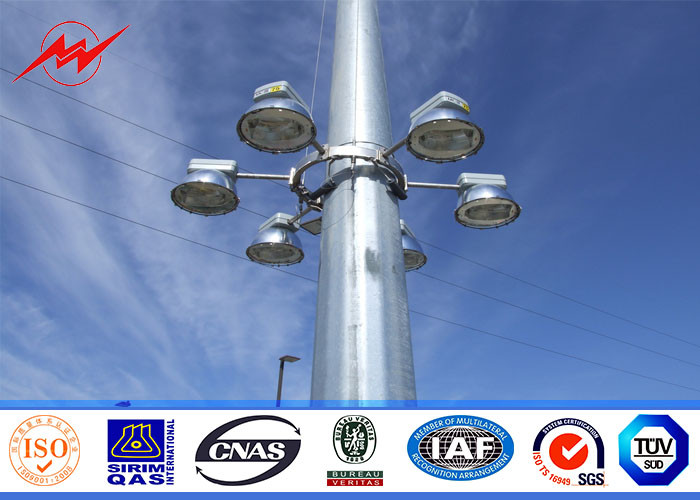

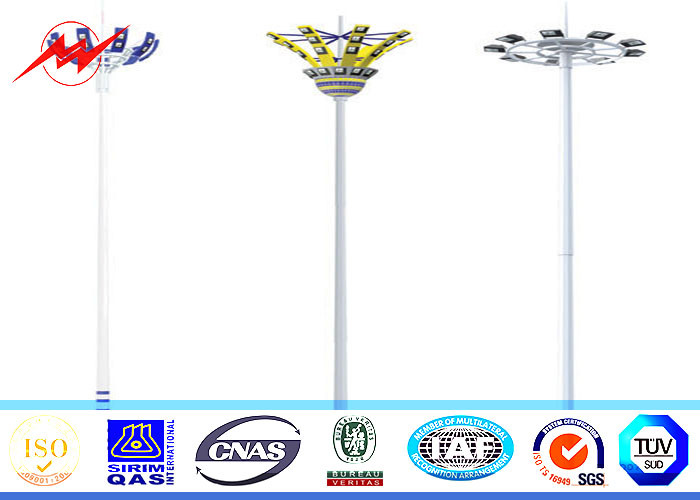

Galvanized 30M High Mast Pole with winch for Parking Lot Lighting
Quick Information
Milky Way’s single tube, high mast structures can reach heights up to 250 feet, and are adaptable to lowering devices or fixed mounting arrangements. Innovations such as the organization’s low-drag, internally wired fixture platform, which works with round or multi-sided shafts, has made Valmont a top choice for customers needing high-mast lighting towers
Applications
• Fly Overs
• Road Junction
• Parks
• Parking Areas
• Apron Lighting
• Airports/Dockyards
• Coal Handling
• Power Plants
• Container Terminals
• Petrole Pumps
• Any other Outdoor Application
Quick Product Description-High Mast Lighting Pole
| Item | 15 MTR | 13 MTR |
|---|---|---|
| Material Construction | Q345(Gr50) | Q345(Gr50) |
| No. of Longitudinal Welds | Single | Single |
| Cross section of mast in polygon((No. of Sides) | Octagonal,dodecagon,hexadecagon | Octagonal,dodecagon,hexadecagon |
| Thickness | Octagonal,dodecagon,hexadecagon | Octagonal,dodecagon,hexadecagon |
| Individual Section’s Length | 4mm,6mm,8mm,10mm or customized design | 4mm,6mm,8mm,10mm or customized design |
| Base & Top dia (OAF) | 7800mm | 1300mm |
| Thickness of galvanization(Average) | 422/200mm | 360/160mm |
| Size of opening door at base | 360 x 1400 mm | 250 x 1000 mm |
| Size of base plate diameter | 625 mm | 560 mm |
| Size of base plate thickness | 32 mm | 32 mm |
| Number of foundation bolts | 8 | 6 |
| Bolt diameter | 28 mm | 28 mm |
Application
Truck and bus terminals
railyards
ship docks
ferry terminals
airports
prisons
industrial and commercial sites
international borders
parking lots
Details for High Mast Pole
ACCESSORIES
Mast with continuous tapered polygonal cross section have high load bearing strength oscillation due to wind speed and related stress are fully taken care in the design.
IMPORTANT TECHNICAL FEATURES
FIXED TYPE HEAD FRAME :
Designed with larger Dia. Non corrosive aluminum pulley system for longer life and perfect balancing.
WINCHES :
Winch designed with gear ration 53:1 and without break of clutches. These are self lubricated for sustained trouble free life.
FINISH :
The complete mast with component is fully hot dip galvanized for longer life.
LANTERN CARRIAGE :
We specialize in custom built design, standard lighting design and various types and shapes. The lantern carriage is supported with three numbers flexible 6 sq. mm. S.S. wire ropes from the distributors that can be elevated/lowered electrically and mechanically.
Special Features of High Mast
• 2 Section Mast for 12/16/20 Mt.
• 3 Section Mast for 25/30 Mt.
• 4 Section Mast for 35/40 Mt.
• Wind Velocity upto 200 km/hr
• Galvanised Steel.
• 2/3 Pulley wirerope system
• Motorised & Manually operated Winch for Lantern Carriage
• Flood Light Luminaires with appropriate
CG Box & HID Lamps
• Aviation obstruction Lamp for LED &
GLS application
