Product Details:
Payment & Shipping Terms:
|
Product Name: | High Mast Pole | Application: | Plaza Lighting |
---|---|---|---|
Surface Finish: | Depends On The Material | Wind Speed: | 160KM/H |
Shape: | Conoid ,Multi-pyramidal,Columniform,polygonal Or Conical | Power Supply: | AC |
Highlight: | high mast lighting pole,Sports Light Poles |

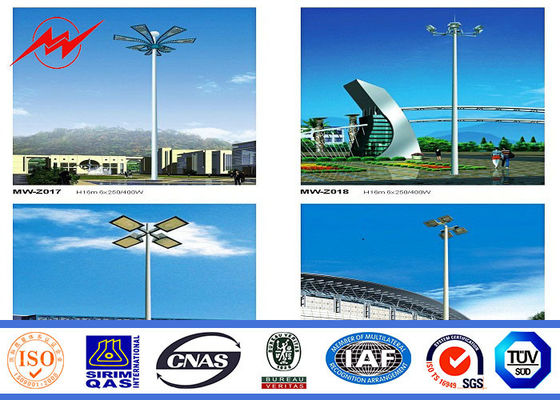

Round Painting 60M High Mast Pole with Lifting System for Plaza Lighting
Specifications:
Type |
high mast pole |
Shape |
conical, hexagonal and octagonal |
Material |
Usually Q345B/A572,minimum yield strength>=345n/mm2 GR50 ,SS400, SS490ST52 |
Torlance of dimenstion |
-0.02 |
Design Load in Kg |
300~ 1000 Kg appliced to 50cm from the to pole |
Surface treatment |
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
Standard |
Octagonal Conical tapered column |
Length of per section |
Within 14m once forming without slip joint. |
high mast pole suit for |
city square,wharf,stadium |
Option of high mast pole |
Height from 20m to 35m |
Production Process of high mast pole |
Raw material test → Cutting →Molding or bending → Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration→Thread →Packages |
Lifting system
Latch barrel with inner mounting bracket locker is mounted to an underside of the mast-top pulley assembly. Furthermore, all steel cables are not exposed and more effectively protected.
Latching mechanism latched on steering arms is able to release strain on steel cables when in the operation position. The process of latching on and off is stable and without vibration.
The bumper is designed on the luminary mounting bracket for avoiding direct damage between mast-top assembly and the raising luminary mounting bracket.
The leveling device for luminary support bracket is easy to operate and convenient to adjust level.
Special designed red-flag indicator has obvious visual effects and reflects actual situation of latching operation.
Production Flow:
The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
