30FT 35FT 8sides Electrical Steel Utility Poles for Power distribution

one 40HQ
MOQ
negotiation
Price
30FT 35FT 8sides Electrical Steel Utility Poles for Power distribution
Features Gallery Product Description Request A Quote
Features
Specifications
Tolerance Of Dimension: +- 2%
Wind Resistance: 3-500km/h
Material: GR50 GR65 S500 S355
Height: 30FT 35FT 8sides Electrical Steel Utility Poles For Power Distribution
Welding: Welding Confirms With International Welding Standard Of CWB
Powder Coating: Pure Polyester Powder Painting, Color Is Optional
Design: Against 8 Grade Of Earthquake
Product Name: 30FT 35FT 8sides Electrical Steel Utility Poles For Power Distribution
Highlight:

8-sided electrical steel utility poles

,

35FT power distribution poles

,

30FT steel power transmission poles
Basic Infomation
Place of Origin: China
Brand Name: Milky Way
Certification: ISO//BV
Model Number: 30FT 35FT 8sides Electrical Steel Utility Poles for Power distribution
Payment & Shipping Terms
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
Product Description

Specifications:



Height From 9 meter to 100 meter
Suit for Electric Power Transmission and Distribution
Shape Polygonal or Conical
Material

Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²

Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²

As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400
Power Capacity 10kV to 220kV
Tolerance of the dimension According to client’s requirement.
Surface treatment Hot dip galvanized Following ASTM A 123, or any other standard by client required.
Joint of Poles Slip joint, flanged connected
Standard ISO 9001:2008
Length of per section Within 14 meter once forming
Welding Standard AWS (American Welding Society ) D 1.1
Thickness 1 mm to 36mm
Production Process Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages
Packages Packing with plastic paper or according to client’s request.



Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.

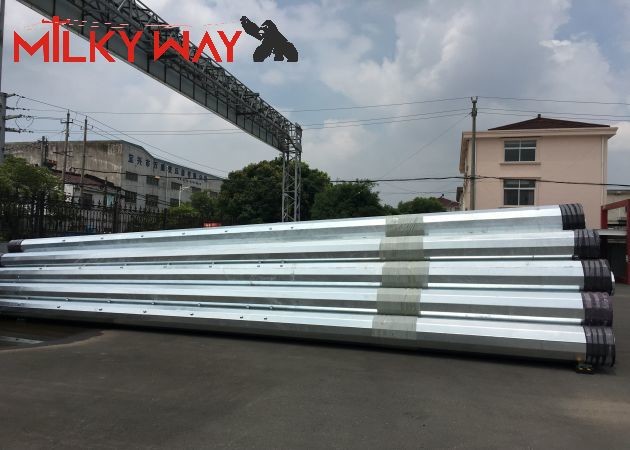

30FT 35FT 8sides Electrical Steel Utility Poles for Power distribution 0





Production Process
Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages

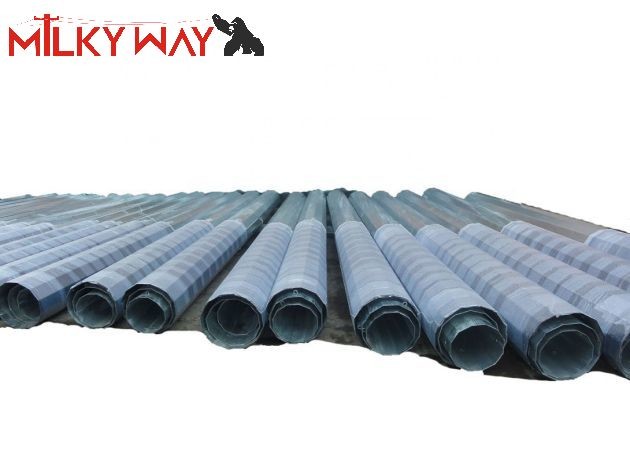

30FT 35FT 8sides Electrical Steel Utility Poles for Power distribution 1







Galvanization
Standard:NFA91121
Average thickness of the galvanization:Not less than 86μm.

30FT 35FT 8sides Electrical Steel Utility Poles for Power distribution 2



Manufacture Tolerance
-Component Length:-25mm to 75mm
-Straightness:2mm/m
-Twisting degree:1°per 3 meters length
-Ovalisation:Maximum is 3%
-The average diameter:+/-0.5%
-Slip length:+/-150mm



Company Introduction:

JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200 million . We have 20 years experience in design and production. Our main products are power pole, communication towers, street lighting poles, steel bracket and so on. The company has strong technical force, advanced production equipment, perfect quality management system, product quality has reached international advanced level.

After 20 years of development, our company products are exported to overseas. Pakistan, Germany, Nigeria, Singapore, New Zealand, India, the Philippines, Australia and so on, we have shared a broad market.Our products are well knowed. Now the capataity of Exports has taken 40% of company sales, which made us become one of the leading export enterprises in china.
