80m High Mast Tower Light Conical High Mast Lighting Columns

China 80m High Mast Tower Light Conical High Mast Lighting Columns supplier
80m High Mast Tower Light Conical High Mast Lighting Columns supplier 80m High Mast Tower Light Conical High Mast Lighting Columns supplier 80m High Mast Tower Light Conical High Mast Lighting Columns supplier

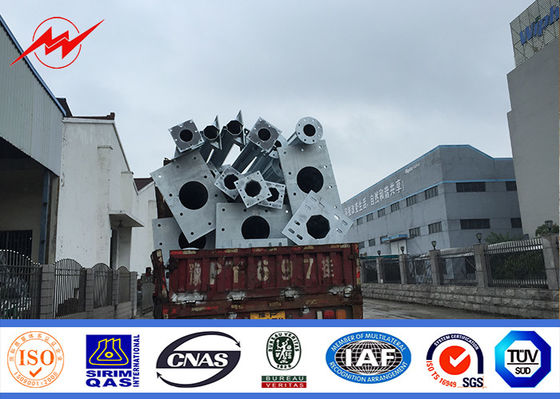

Large Image :  80m High Mast Tower Light Conical High Mast Lighting Columns

Product Details:

Place of Origin: JIANGSU,CHINA
Brand Name: milky way
Certification: ISO9001:2015
Model Number: 69KV

Payment & Shipping Terms:

Minimum Order Quantity: ONE CONTAINER
Price: USD 130-180POLE
Packaging Details: The normal package is container(Size: L*W*H). Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole , anyway also can following by client required , The lo
Delivery Time: ALWAYS 20DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000POLES/MOUTH
Contact Now
Detailed Product Description
MATERIAL: S355JR APPLICATION: ELECTRICITY DISTRIBUTION
THICKNESS: 2.5-10MM SHAPE: POLYGON
GALVANIZATION: ASTM A123,average Coationg Not Less Than 85um WELDING: AWS D1.1,penetration 100%
LIFETIME: 50 YEARS WIND SPEED: 160KM/H
ULTIMATE TENSILE STRENGTH: 490-620MPA
High Light:

HDG high mast tower light

,

80m high mast tower light

,

Conical high mast lighting columns

Circle 22M HDG High Mast Pole with 7 Lamps for Plaza Lighting





Specifications:



Height 20m-80m
Max length per section 14 m
Thickness 2.5mm~30 mm
Shape Conical or polygongal tapered
Material Q235B/A36/A283 M Gr.C /SS400/S235 JR/St 37-2 /Fe 360
Lamp Power 9 W~800 W (HPS/MH)
Electroshock resistant protective grade Grade Ⅰ
Finish hot dipgalvanization ,blasting,powder coating ,painting
Galvanization standard ASTMA 123 / EN ISO 1461
Welding AWS D 1.1 /BS EN 1011-1,BS EN 1011-2
Joint of Poles Insert mode,innerflange mode,face to face joint mode
Design of pole Against earthquake of 8 grade
Lifting system

Lifter fixed in the inner of the pole with lifting speed of

3 ~ 5 meter per minute

Euqiped with ectromagnetism brake and break-proof device, manual

opeation applied under power cut.

Head frame

Our headframe can be designed as per customer requirment

to carry camera or industrial antenna.





Descripition of material:


1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped vertical steel barwith hot galvanized anti-corrosion treatment
2. Light plate frame is made by high-quality stainless steel
3. Fastened bolts and nuts of stainless steel


Feature:


Special designed for stadium to provide high-power, large-area lighting for facilities; Lighthouse is devided into fixed or lift, fixed poles set up an escalator inside for installation and maintenance purposes
Light source :400w-1000w sodium light







Applications:



Plaza High Mast Lighting pole

Airport High Mast Lighting pole

Highway High Mast Lighting pole

Storage-yard High Mast Lighting pole

Industrial-plant High Mast Lighting pole

Park High Mast Lighting tower

Dock High Mast Lighting tower

Stadiums High Mast Lighting tower

Overpass High Mast Lighting tower

Toll-station High Mast Lighting tower





More Pictures:
